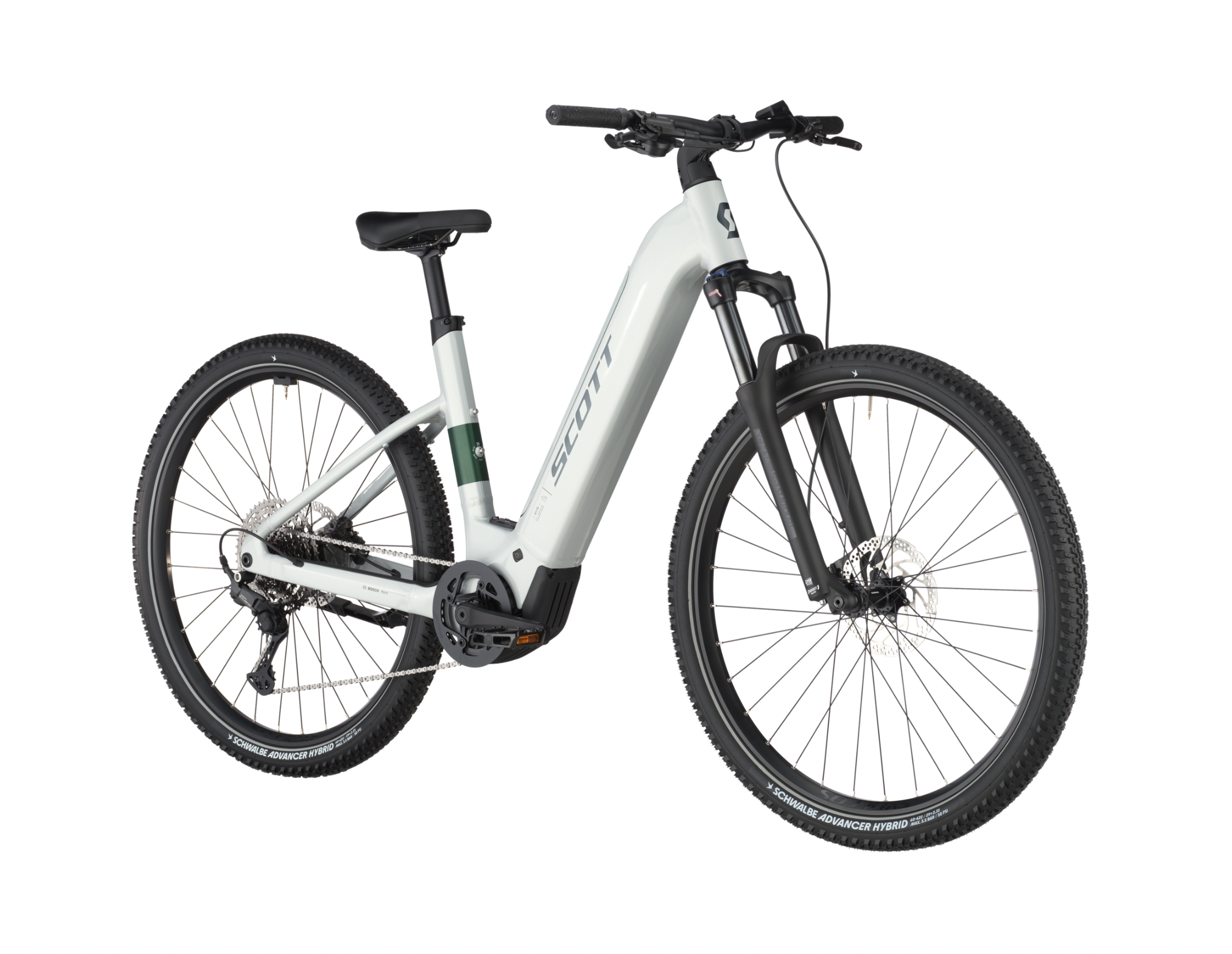

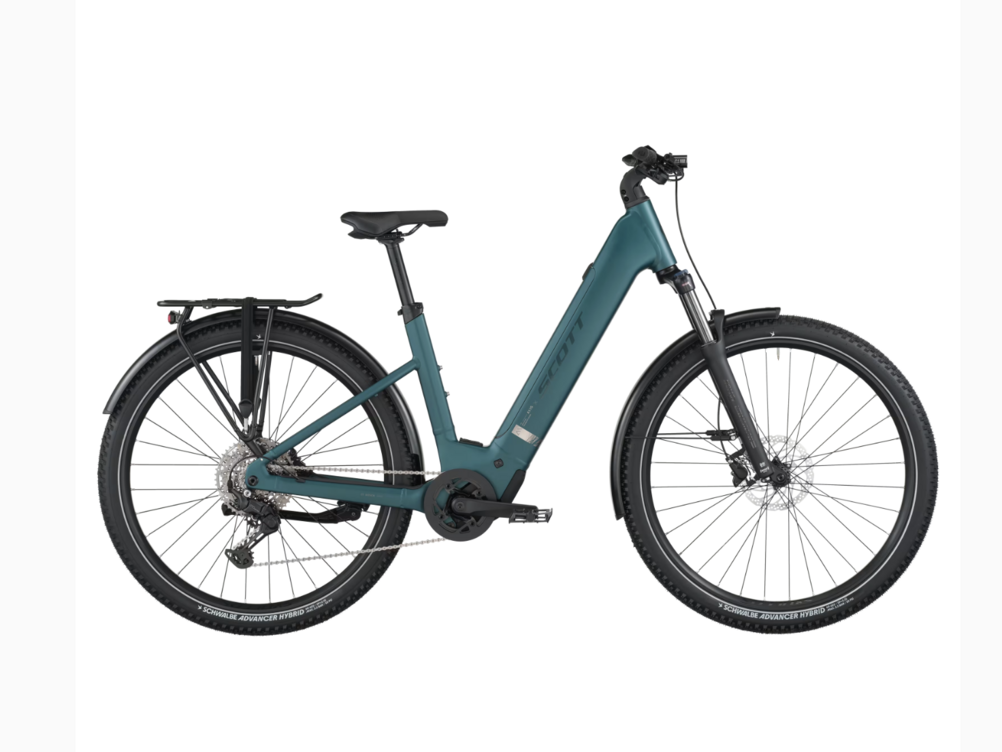

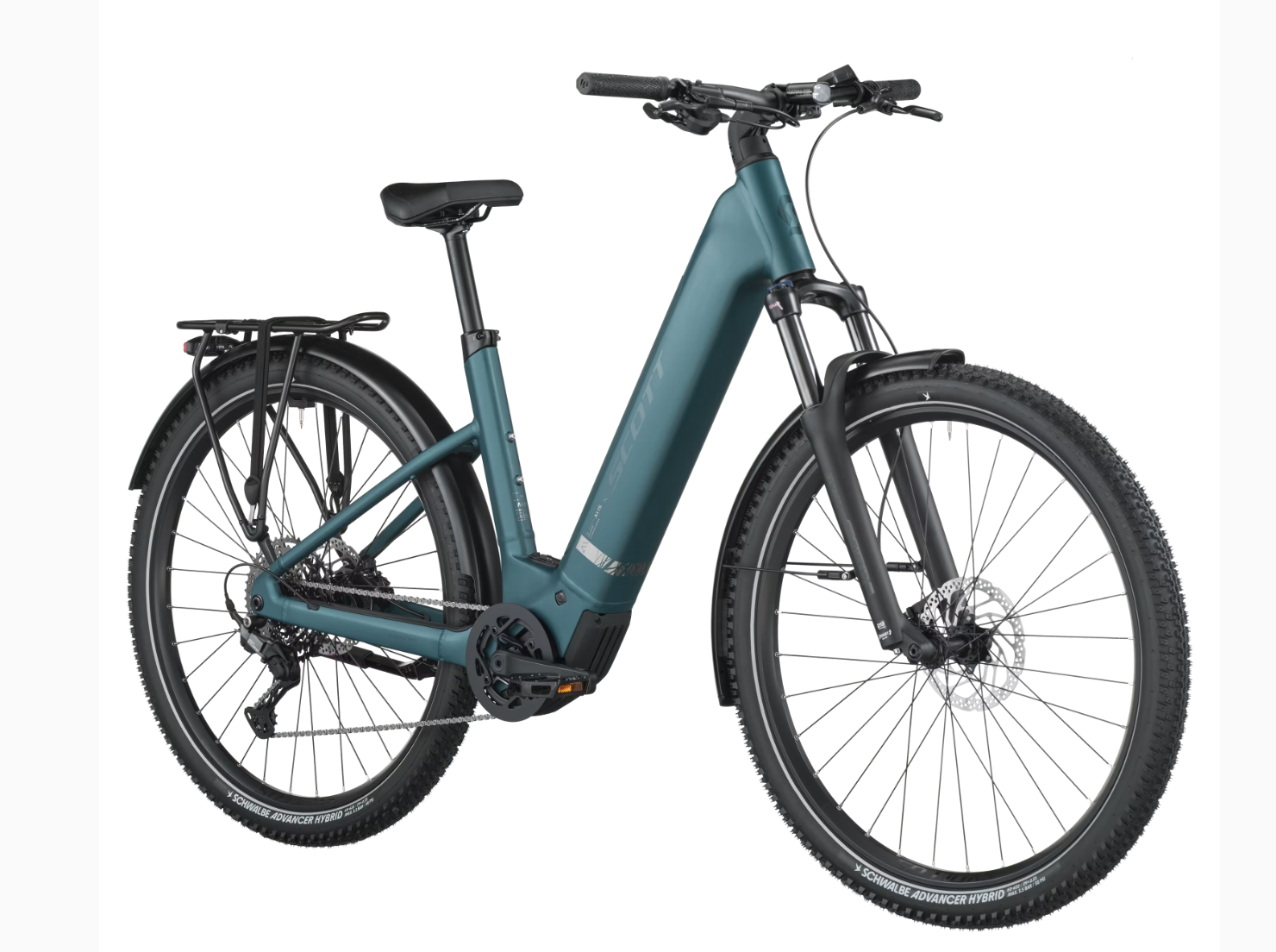

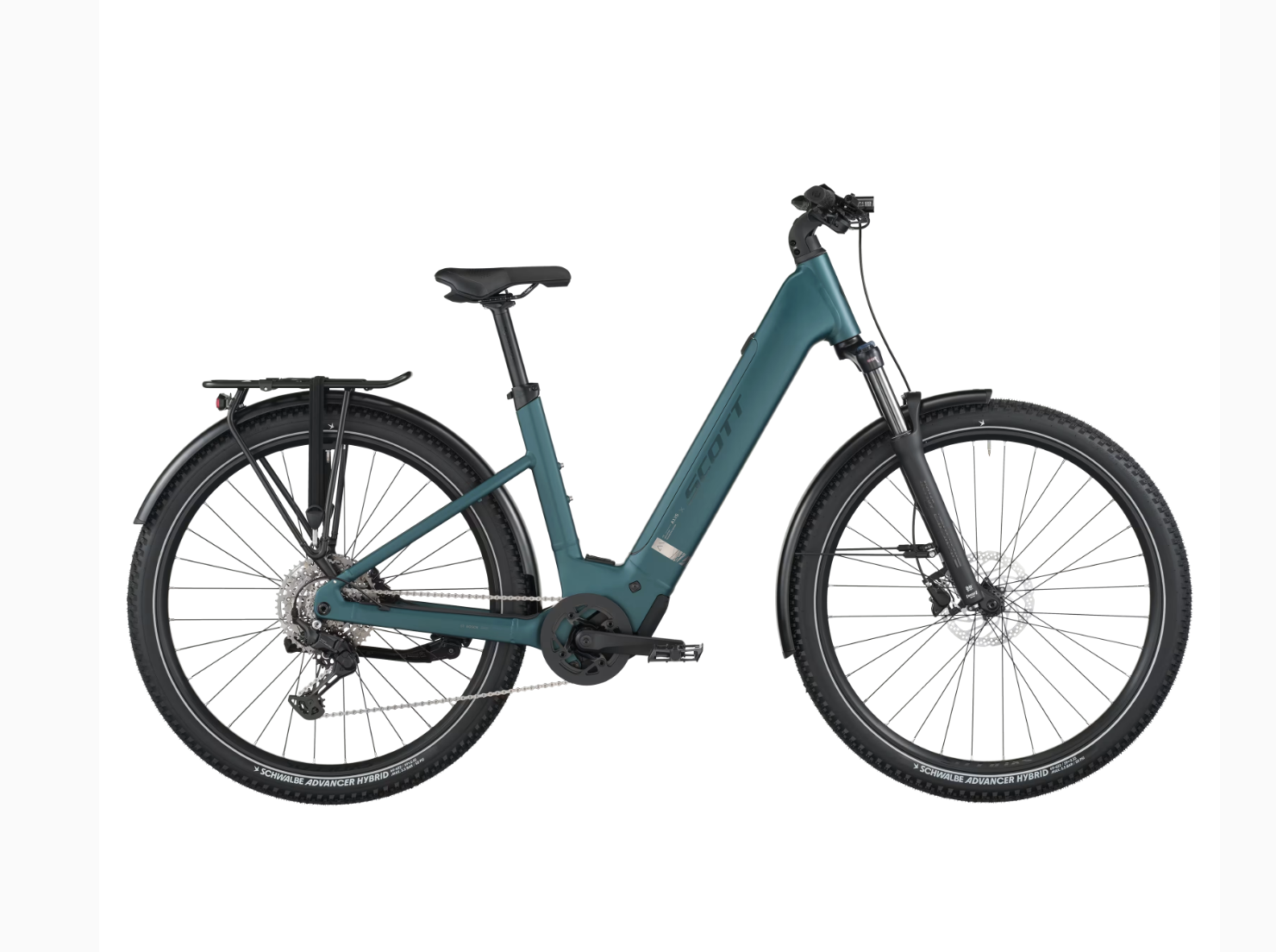

Scott Axis 30 wave
The perfect bridge between urban cruising and mountain biking.
The ALL-NEW SCOTT AXIS eRIDE is equipped with the latest Bosch Performance CX motor and 600Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Heavy Duty rack that can carry up to 27kg, and the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.
Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height to make mounting and dismounting a breeze. With the same features and handling characteristics, you can simply pick the one that fits you best.
As comfy as you'd like. Ride Axis.
Technical Specifications
Frame
Alloy S-XL=29", 6061 Alloy custom butted tubing
Top extraction battery
UDH Interface, 12x148mm with 52mm Chainline
Fork
SR Suntour XCM34 Coil, Tapered, 15x110 TA, 120mm Travel
Travel
120mm
Headset
Acros, 1.5"- 1.5"
semi integ. OD 50/61mm, ID 44/55mm
Rear Derailleur
Shimano CUES RD-U6000GS 10 Speed
Shifters
Shimano SL-U600010RC
Brakes
Shimano BR-MT200 Disc Brakes
Crankset
FSA CK-220 165mm
Chainring
Miranda 36T w/Chain Guard
Handlebar
Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise
Syncros Lock On Grip
H'stem
Syncros with front Light mount
Pedals
VP VPE-506
Seatpost
Syncros 3.0, 31.6mm
Seat
Syncros Capilano
Front Hub
Shimano HBTC50015BB, 15x110mm
Rear Hub
Shimano FHTC500HMBB, 148x12mm
Chain
Shimano LG500
Cassette
Shimano CS-LG40010 11-48T 10 Speed
Spokes
Stainless Black
Rims
Syncros X18 Disc
Lights
Front Lezyne Hecto E65
Rear Super Bright Lezyne Light
Extras
Curana alloy profile Fender
Ursus Kickstand
Approx weight in KG
29.7
Approx weight in LBS
65.48
Drive Unit
Bosch Performance Line (BDU346Y)
EU: 25kmh
Battery
PowerTube 540Wh
Display
Bosch Purion 200
Charger
2A Charger
Rotor
Front: SM-RT30 CL 180mm, Rear: RT-EM300 CL 180mm
Front Tire
Schwalbe Advancer 60-622 Wired
Rear Tire
Schwalbe Advancer 60-622 Wired
Rack
Racktime Micro Rack SnapIt 2.0 27KG
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
