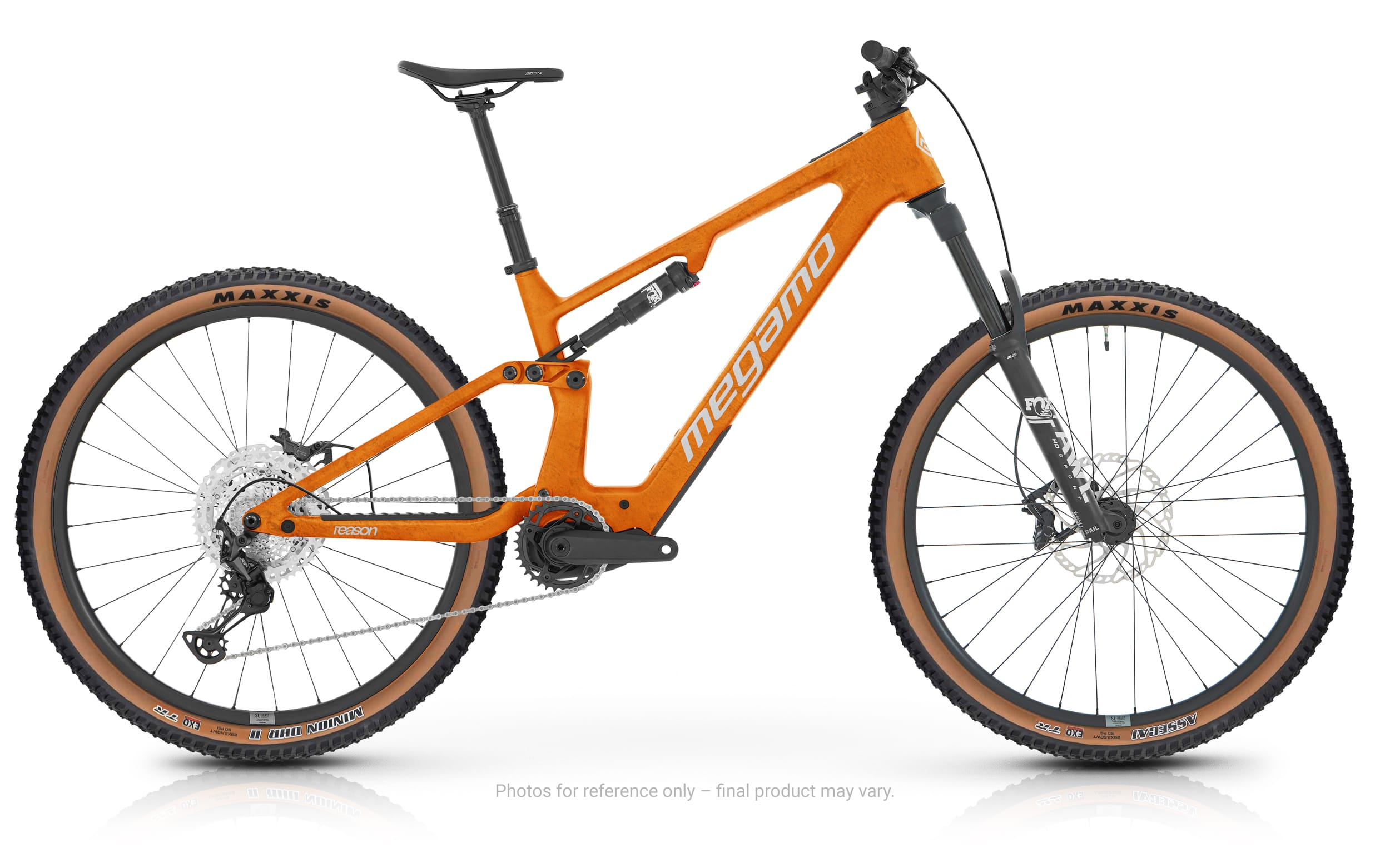

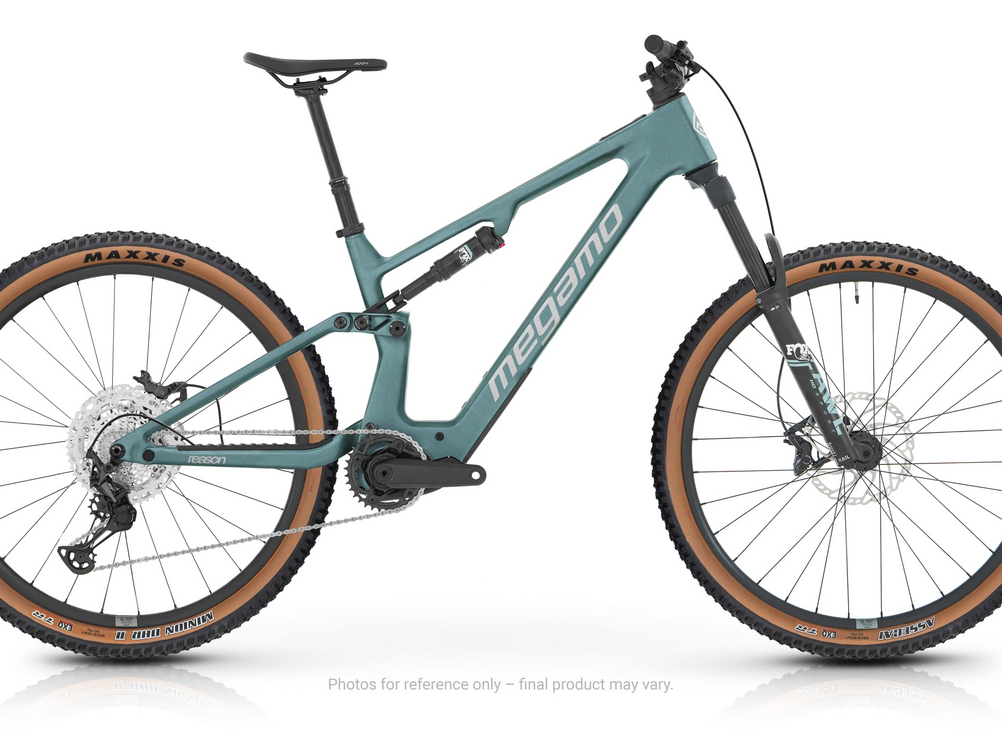

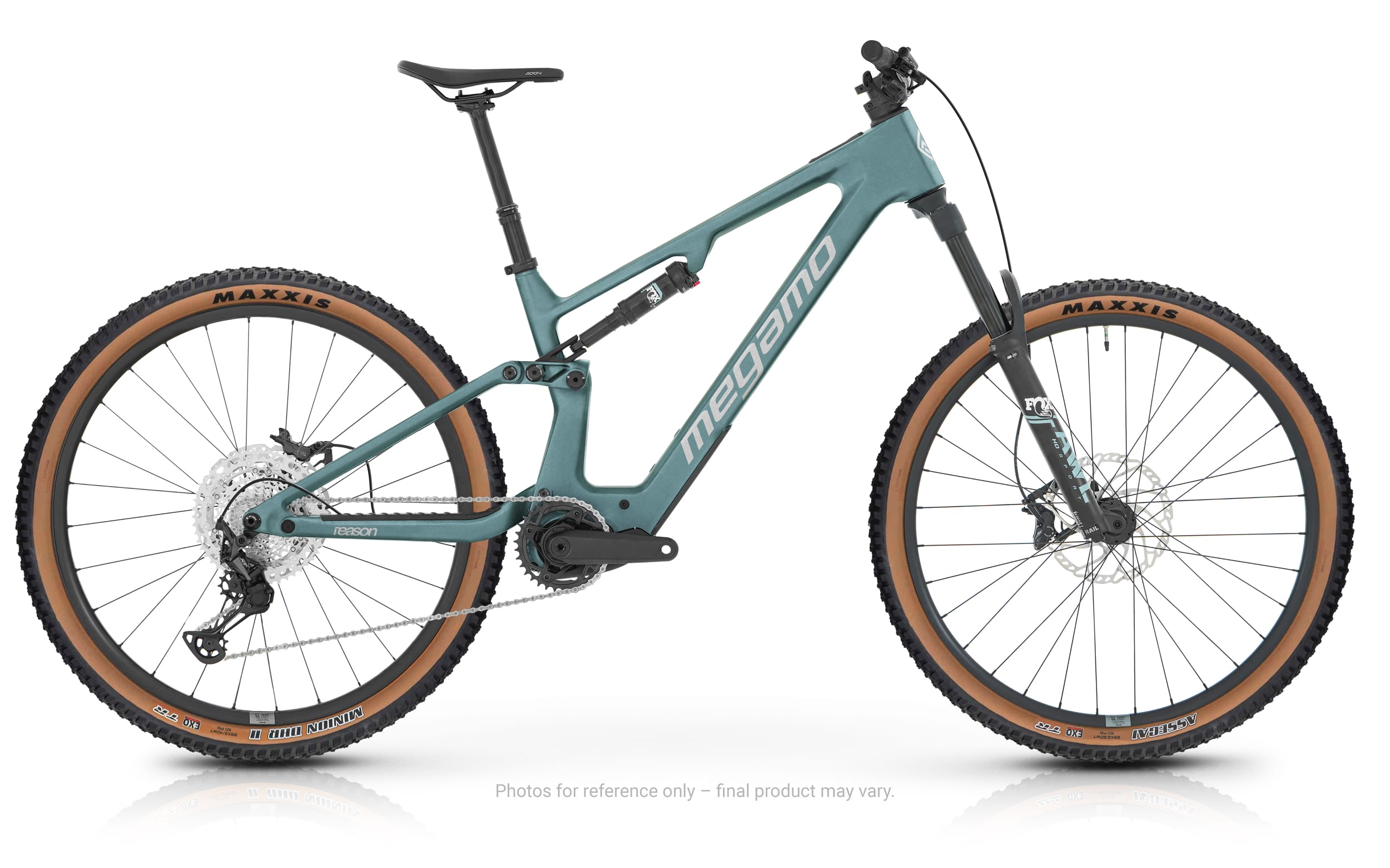

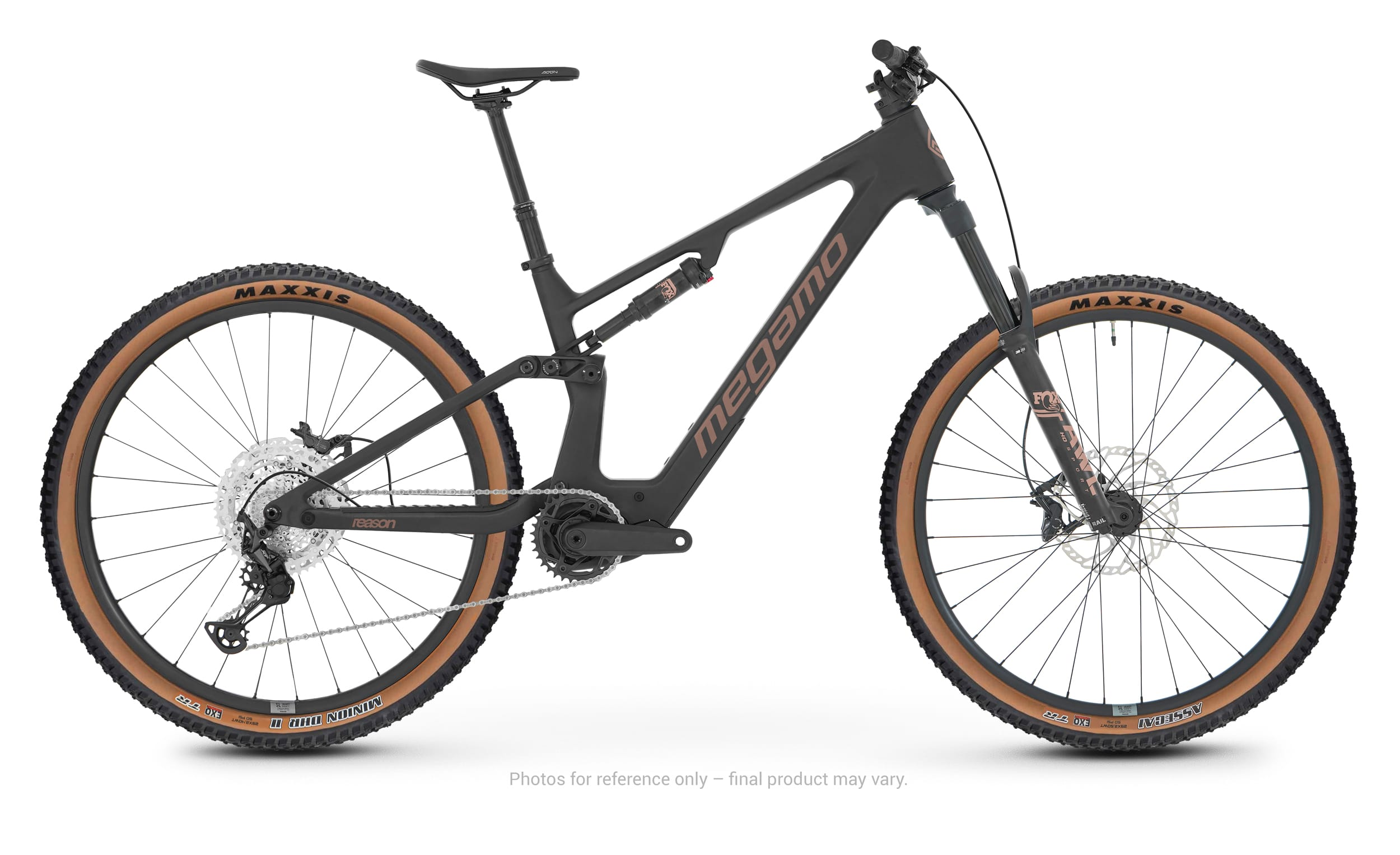

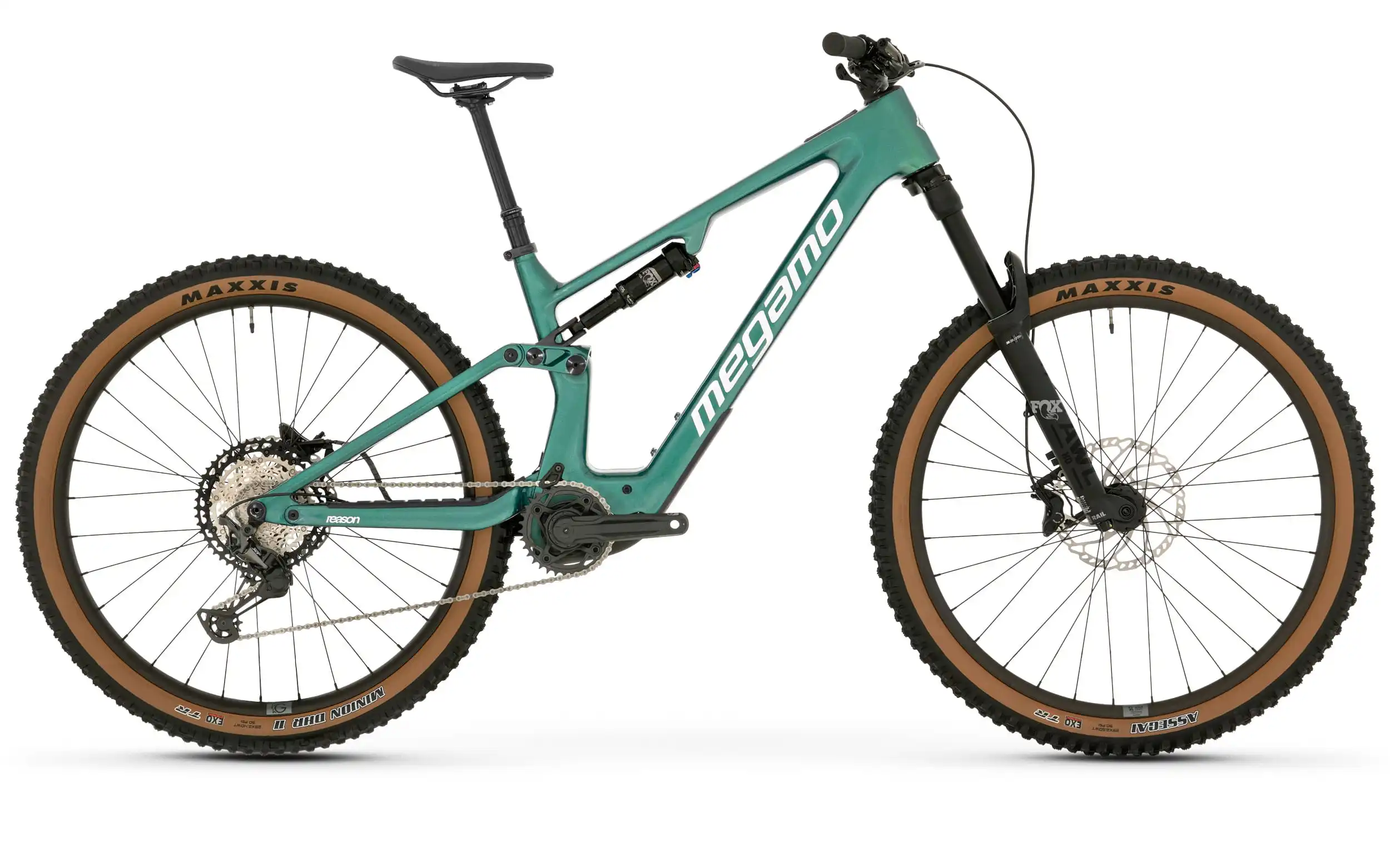

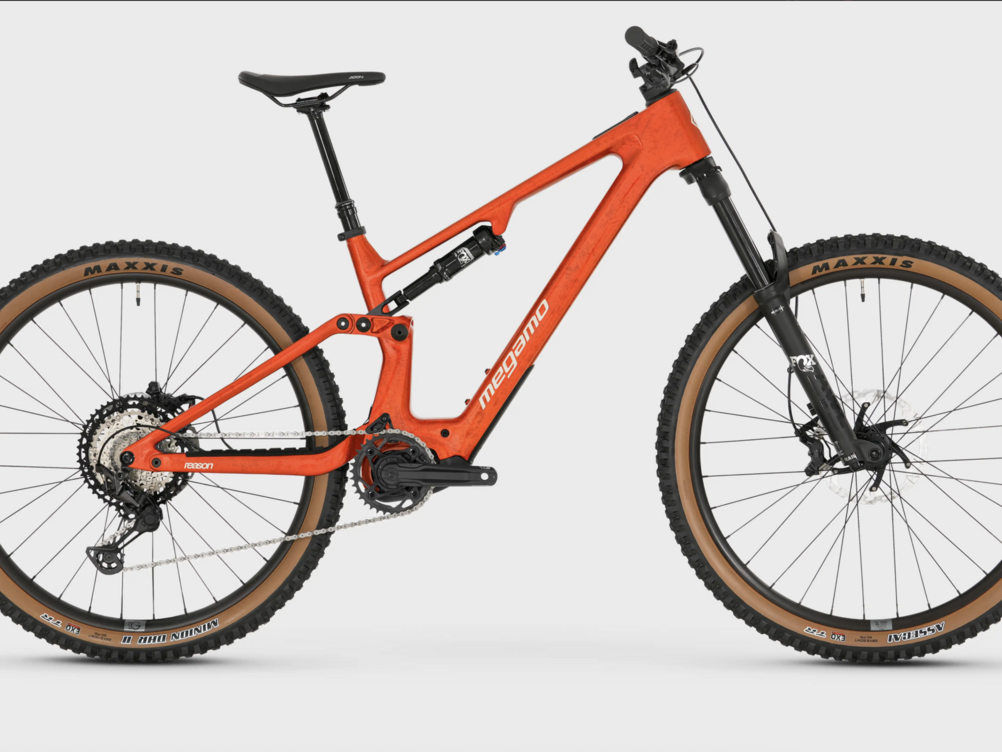

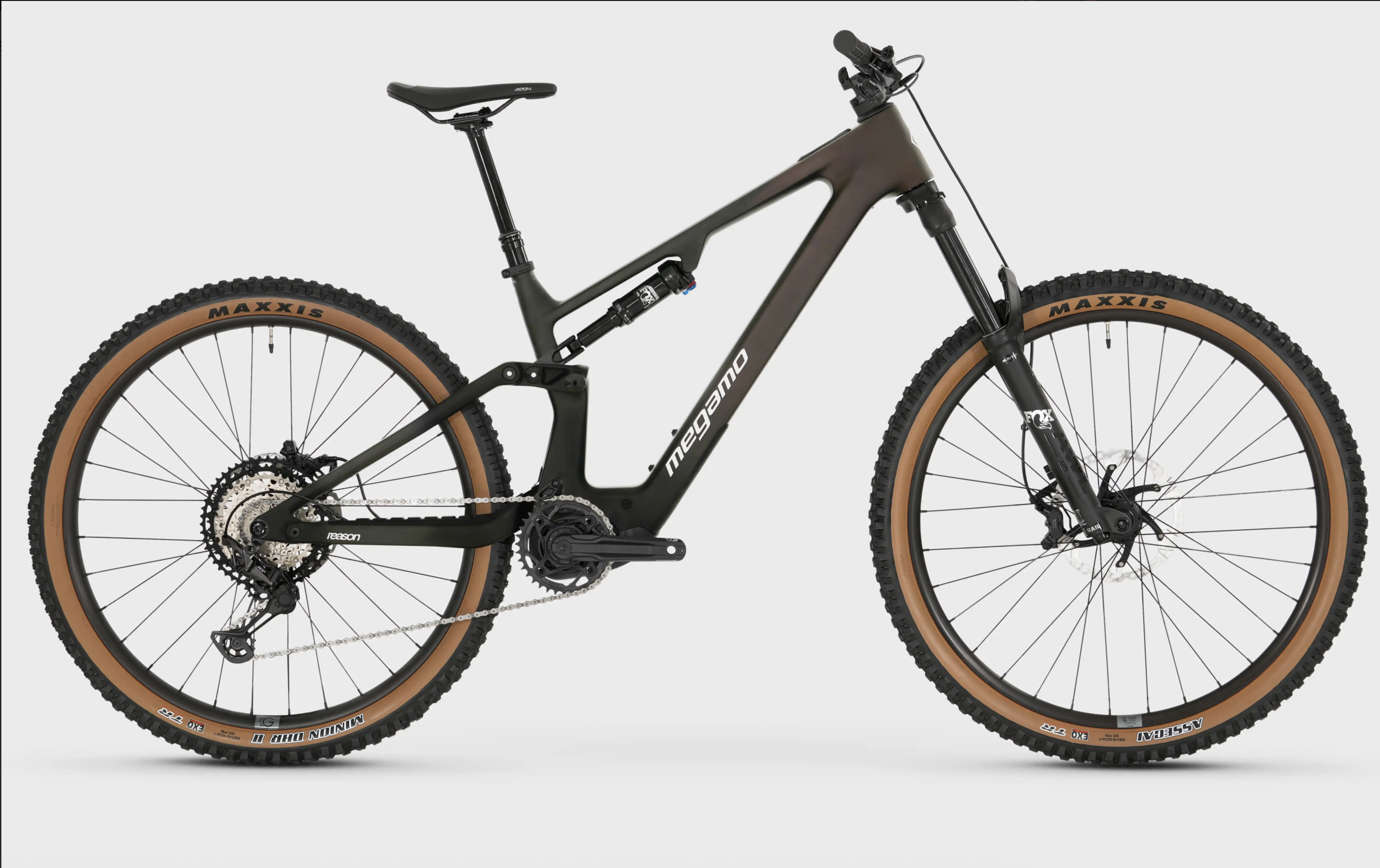

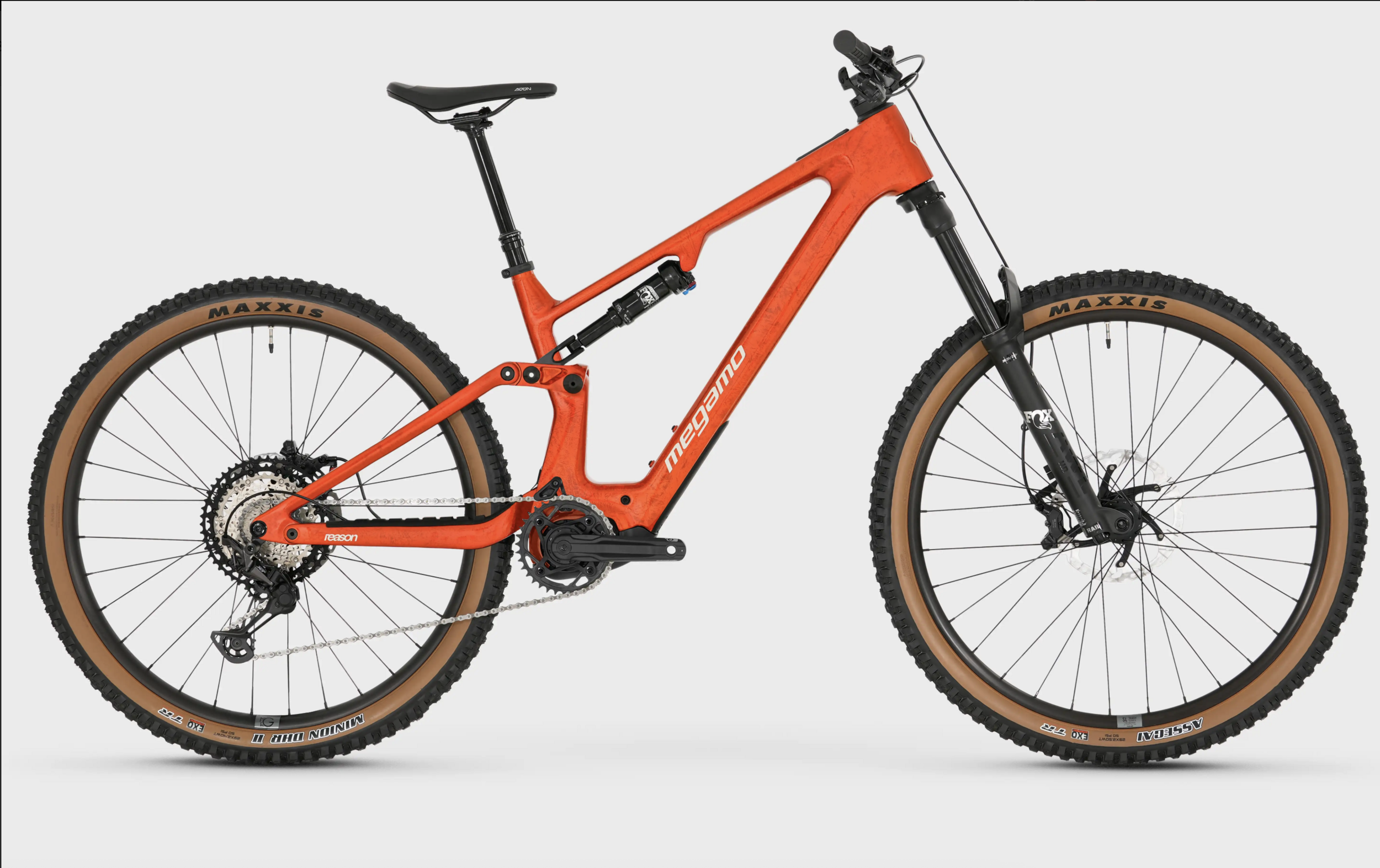

MEGAMO REASON CRB 07
MAIN FEATURES
· Image DJI Avinox M1 Motor -120Nm 1000W (Boost mode) / 105Nm 850W
· Integrated LI-ION 800 Wh battery
· Reason Full Carbon frame, Boost, 160 mm wheel travel
· Fox 36 AWL HD fork with 160 mm travel
· Fox Rhythm shock
· Shimano XT / Deore combo drivetrain, 12-speed
· Shimano MT520 4-piston hydraulic disc brakes
Frameset
Frame Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Fork Fox 36 FLOAT AWL HD Sport 29, 160mm, 15QRx110 Boost, 1.5T, 68HT, 44mm rake
Shock Fox Float Rhythm, Evol LV, 210x55mm, 2 Position
Headset Acros AZX-589 ZS56 blocklock 150º
Electronic components
Motor DJI Avinox M1,120Nm 1000W (Boost mode) / 105Nm 850W, 5 modos de asistencia, 150rpm
Battery DJI Avinox 800 Wh, 35,9V, IP56
Display DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi
Drivetrain
Rear Derailleur Shimano XT M8100, Shadow Plus 12-Speed
Shifters Shimano Deore 6100 Speed Rapidfire Plus 12-Speed
Crankset 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
Cassette Shimano Deore 6100 10-51T
Brakes
Brakes Shimano MT520 hydraulic disc 4-Piston, 203mm
Wheels
Tires Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Wheels Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim
Components
Handlebar Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
Stem Satori New Ursa 35mm
Seatpost Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
Seat Fizik Terra Aidon X5
