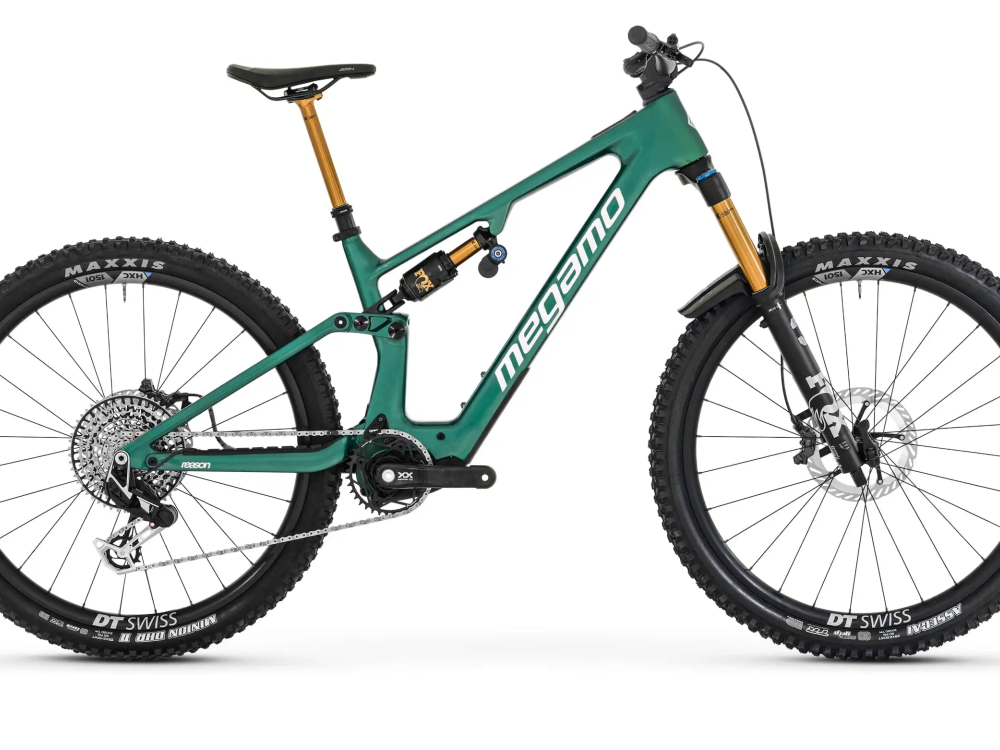

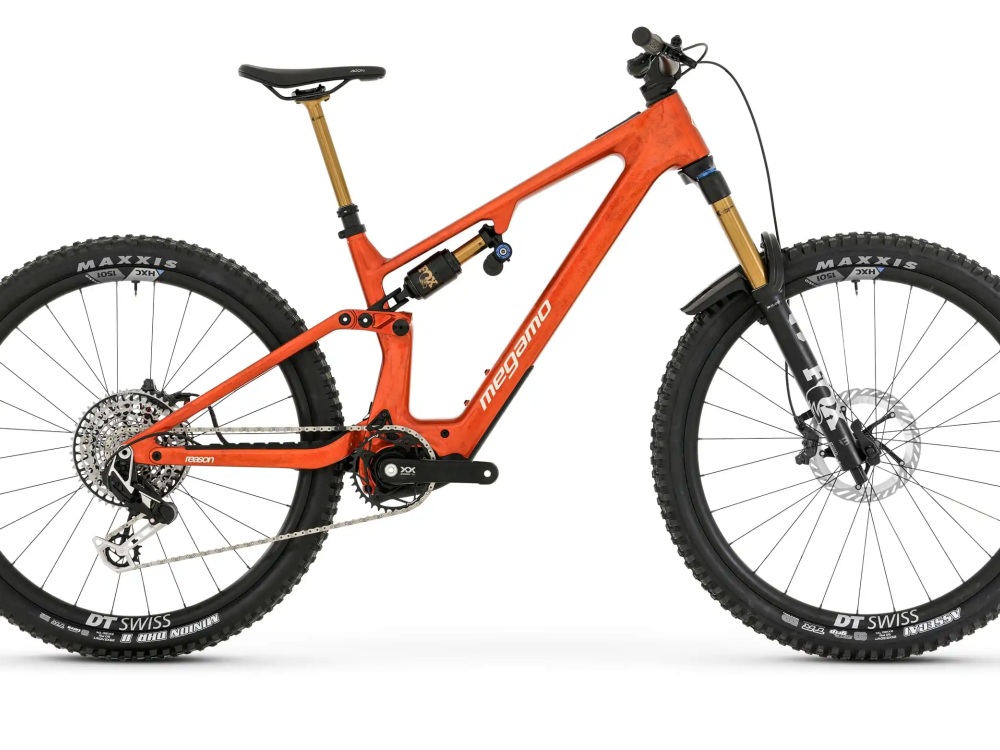

MEGAMO REASON CRB 01
MAIN FEATURES
· Avinox M2S Motor -150Nm 1300W (Boost mode) / 130Nm 1300W
· Integrated LI-ION 800 Wh battery
· Reason Full Carbon frame, Boost, 160mm Wheel travel
· Fox 38 Float Factory fork with 160 mm travel
· Fox Float X2 Factory shock
· Sram XX AXS T-Type 12-speed drivetrain
· Shimano XT disc brakes
· DT Swiss 1501 HXC 30 Carbon Wheels
TECHNICAL INFORMATION
Frameset
Frame Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Fork Fox 38 Float Factory E-Bike Optimized, 160mm Travel, Grip X2
Shock Fox Float X2 Factory, 210x55 mm, Evol - Transverse Reservoir
Headset Acros AZA-288R2 ZS56 blocklock 135º
Electronic components
Motor Avinox M2S -150Nm 1300W (Boost mode) / 130Nm 1300W
Battery Avinox 800 Wh, 35,9V, IP56
Display Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326 ppi
Drivetrain
Rear Derailleur Sram XX EAGLE AXS T-TYPE, 12-Speed
Shifters Sram AXS POD Ultimate
Crankset Sram XX EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Sram XX EAGLE Crankset 165mm
Cassette Sram XX Eagle T-TYPE 10-52T
Brakes
Brakes Shimano XT M8220, Hydraulic Disc 4-Piston, RT-CL800 203 mm
Wheels
Tires Front: Maxxis Assegai 29x2.5 DD 3C MaxxGrip / Rear: Maxxis Minion DHR II 29x2.4 DD 3C MaxxTerra
Wheels DT Swiss 1501 HXC 30 Carbon, Tubeless ready
Components
Handlebar Carbon Race Face ERA 35x800, Rise 20mm
Stem Satori Ursa, 35 x 35 mm
Seatpost Fox Transfer Factory Kashima 31,6. Internal routing, remote.
Seat Fizik Terra Aidon X1, 145mm
