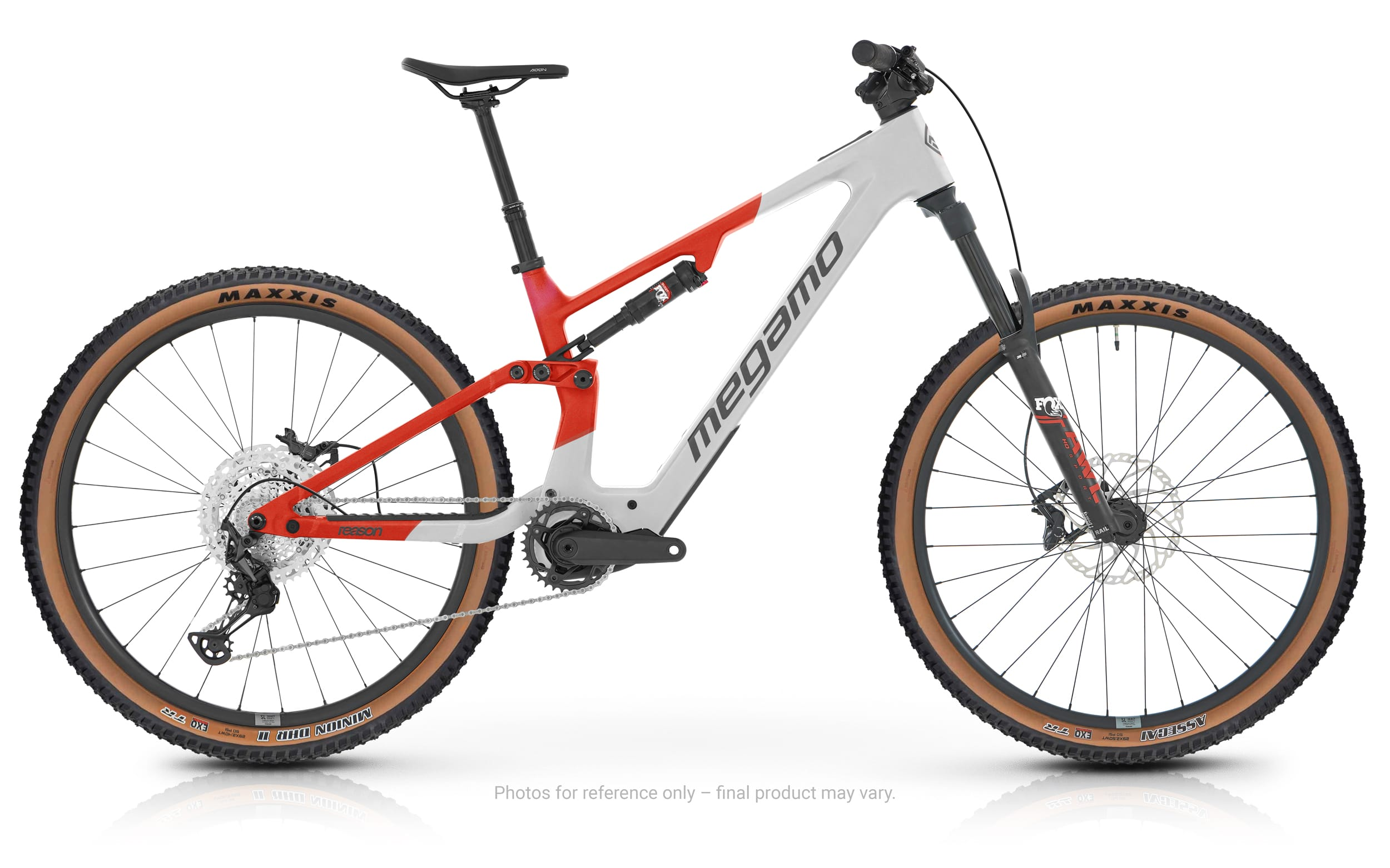

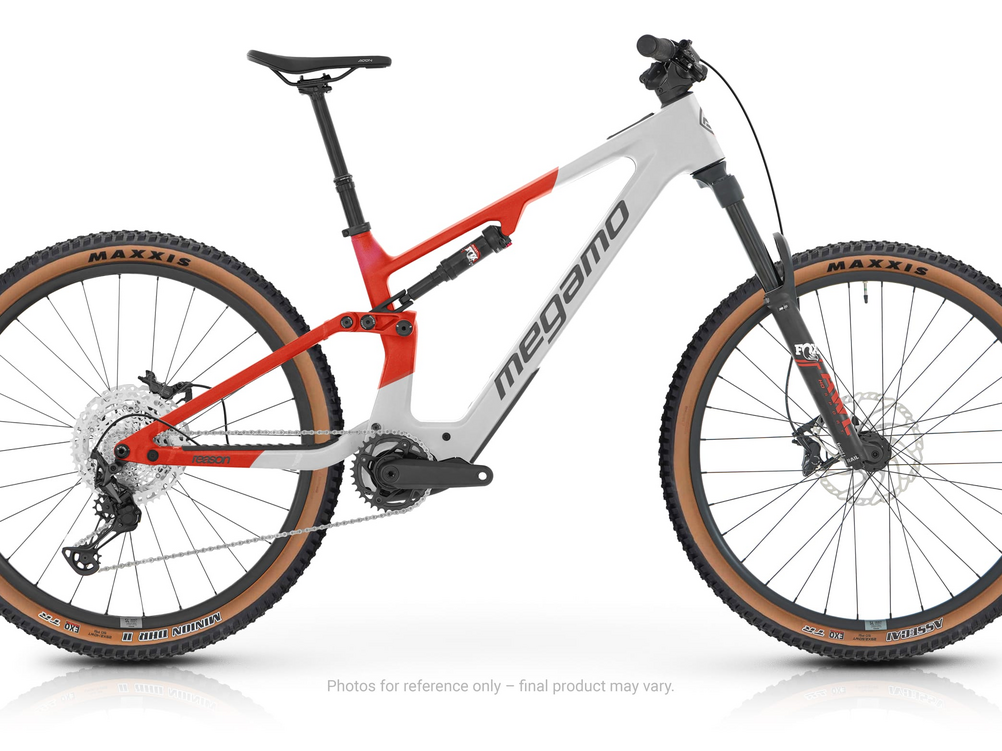

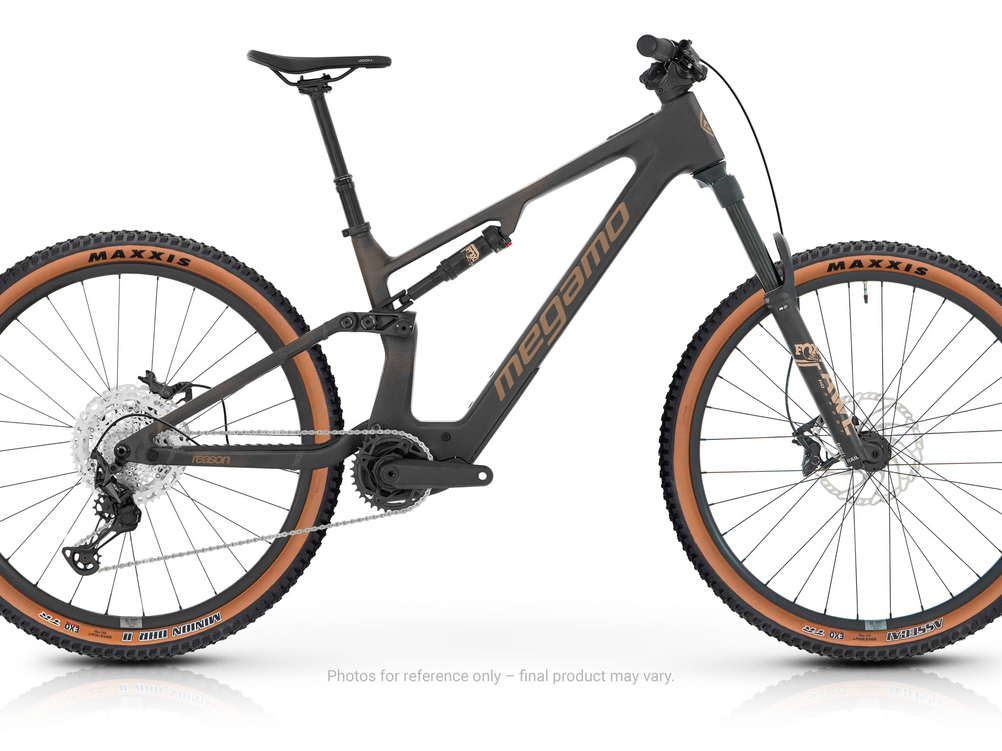

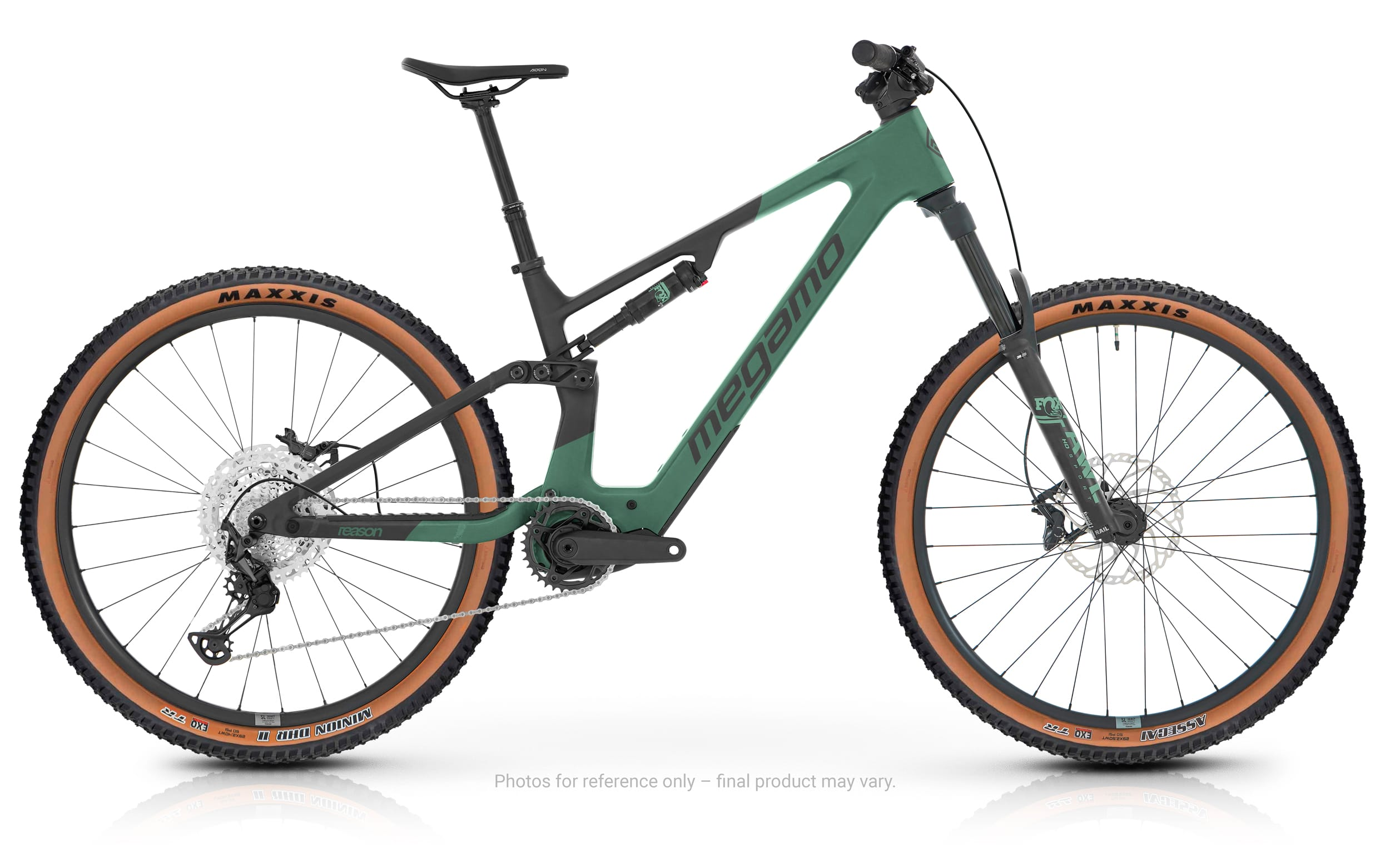

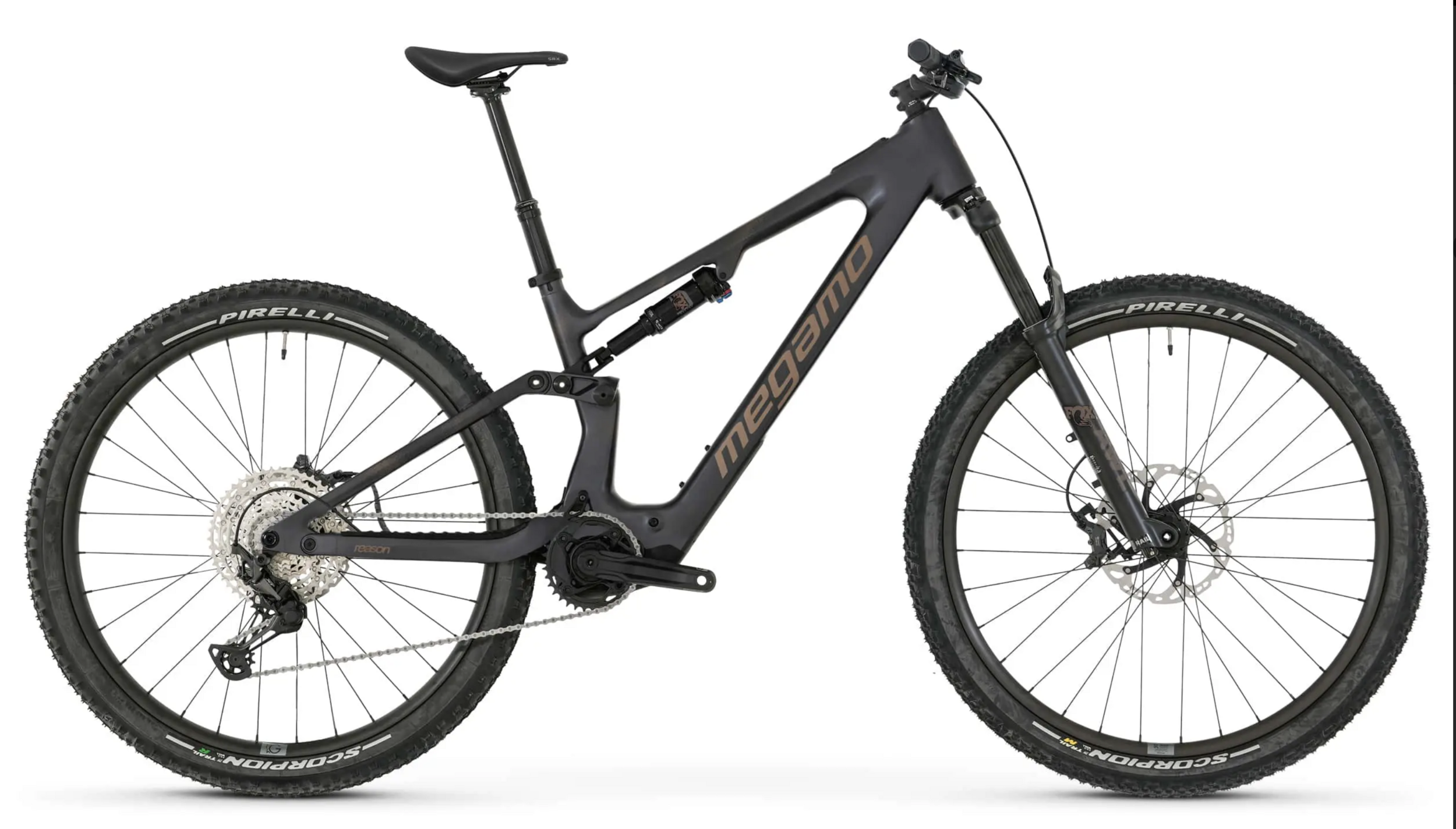

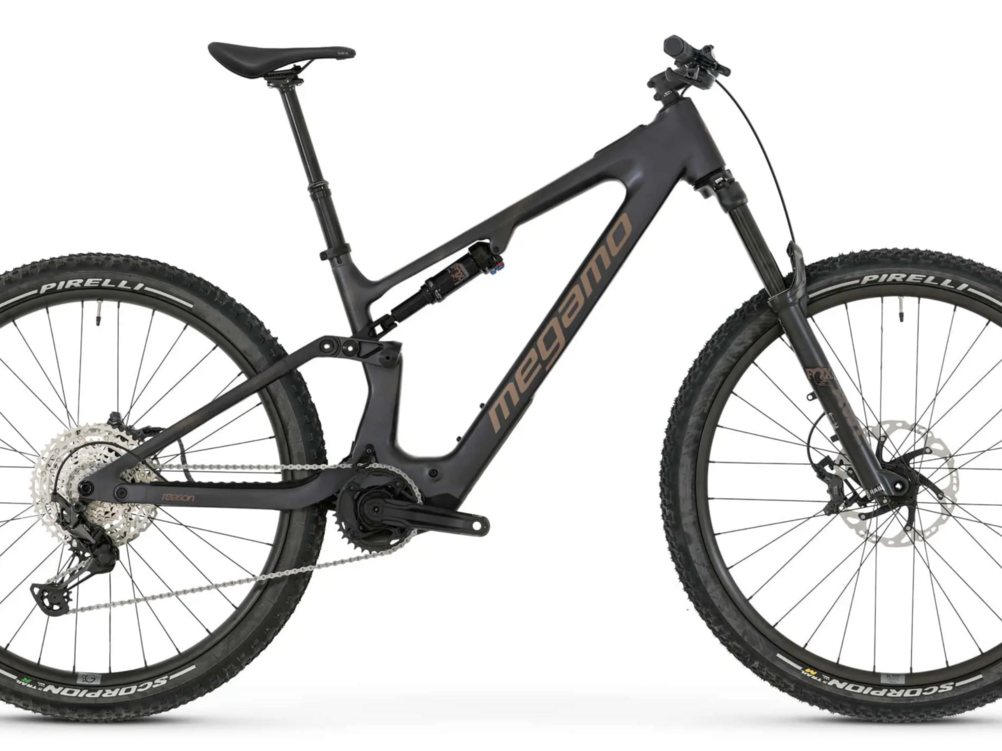

MEGAMO REASON Air AL 15
REASON AIR AL 15 2026
MAIN FEATURES
· DJI Avinox M1 Motor -120Nm 1000W (Boost mode) / 105Nm 1000W
· Integrated LI-ION 800 Wh battery
· Reason AL frame, Boost, 140 mm wheel travel
· Fox 34 AWL HD fork with 140 mm travel
· Fox Rhythm shock
· Shimano XT / Deore combo drivetrain, 12-speed
· Shimano XT 4-piston hydraulic disc brakes
Technical information
Frameset
Frame Reason AL Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 140 mm
Fork FOX 34 Float AWL, 140 mm Travel, Rail 2.0, Sweep-Adjust, Kabolt Axle 110, 1.5 Tapered, 44mm offset
Shock Fox Float Rhythm, Evol LV, 210x47,5mm, 2 Position
Headset Acros AZX-589 ZS56 blocklock 150º
Electronic components
Motor DJI Avinox M1, 120Nm 1000W (Boost mode) / 105Nm 1000W, 5 assistance modes, 150rpm
Battery DJI Avinox 800 Wh, 35,9V, IP56
Display DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi
Drivetrain
Rear Derailleur Shimano XT M8100, Shadow Plus 12-Speed
Shifters Shimano Deore 6100 Speed Rapidfire Plus 12-Speed
Crankset 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
Cassette Shimano Deore 6100 10-51T
Brakes
Brakes Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Wheels
Tires Front: Pirelli Scorpion 29x2.4 MTB scM Trail ProWALL SmartGRIP / Rear: Pirelli Scorpion 29x2.4 MTB scR Trail ProWALL SmartGRIP
Wheels Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim
Components
Handlebar Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
Stem Megamo 3D Forged Alloy, ±7º Rise, S size 60 mm / M size 60 mm / L size 70 mm
Seatpost Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
Seat Selle Royal SRX Open
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.
