Commercial Meta Power Avinox DJi Rockshox 2026

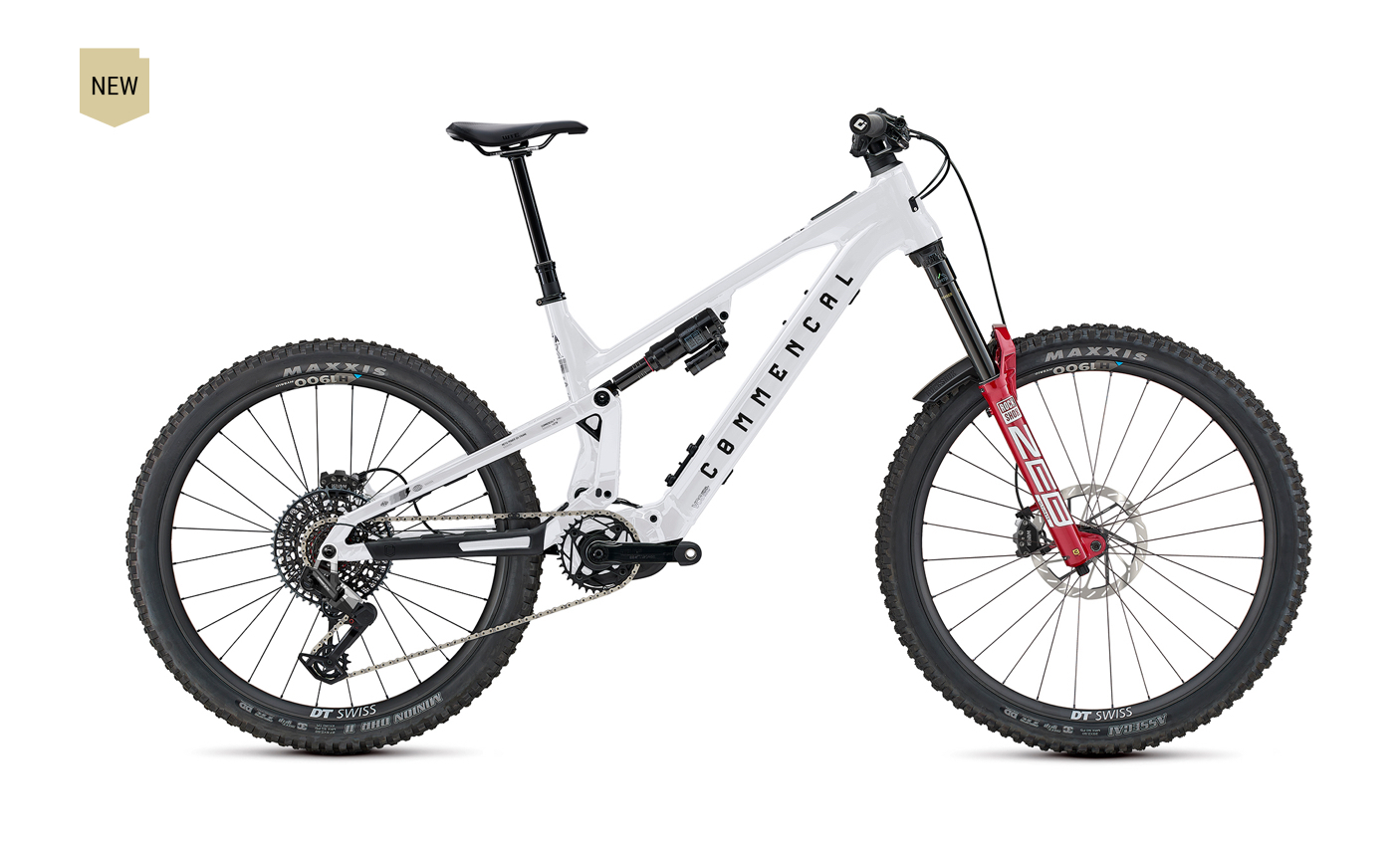

The META POWER SX DJI combines performance and strength with excellent handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.
*Bike specifications may be subject to change without notice.
SPECIFICATIONS
FRAME
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
MOTOR
AVINOX
BATTERY
AVINOX fixed
600 W on S, 800 W on M / L / XL,
AVINOX 12A/508W Fast Battery charger
DISPLAY
AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
Switch: AVINOX BC100, Wireless controller.
SHOCK
ROCKSHOX Super Deluxe Select
230 x 60 mm, Debonair +, 2-postion (open/firm) lever, Rebound
FORK
ROCKSHOX Zeb Ultimate 170 mm
29", damper 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset
HEADSET
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings
STEM
RIDE ALPHA 40
40 mm extension, 31.8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
RIDE ALPHA MUSHROOM
Soft compound, single clamp, black
BRAKES
SRAM Maven Base, 4 pistons
Rotors: SRAM HS2, 6-bolt, 220 mm
SHIFTERS
SRAM Eagle 90
12s
CHAIN GUIDE
RIDE ALPHA
32-34t
REAR DERAILLEUR
SRAM Eagle 90
12s, T-TYPE
CRANKSET
E13 HELIX CORE, 155 mm crank arms
Chainring: SRAM CR T-Type, 34t
CHAIN
SRAM GX T-type
12s
CASSETTE
SRAM XS 1270 T-Type
RIMS
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
HUBS
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
SPOKES/NIPPLES
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
TYRES
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27,5x2.50WT 3C MaxxGrip, Double Down, TR - Front: 29x2.50WT 3C MaxxGrip, Double Down, TR
SEAT POST
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL
SADDLE
WTB SOLANO
142 x 240 mm, Medium
WEIGHT
- kg / - lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED
CRANKBROTHERS Stamp 1
COLOUR
Pure White
Shiny Finish
ACCESSORIES
RideWrap Lotus Pro™ protection film applied, motor protector, chain stay protector, seat stay protector, fork fender, FIDLOCK base.
