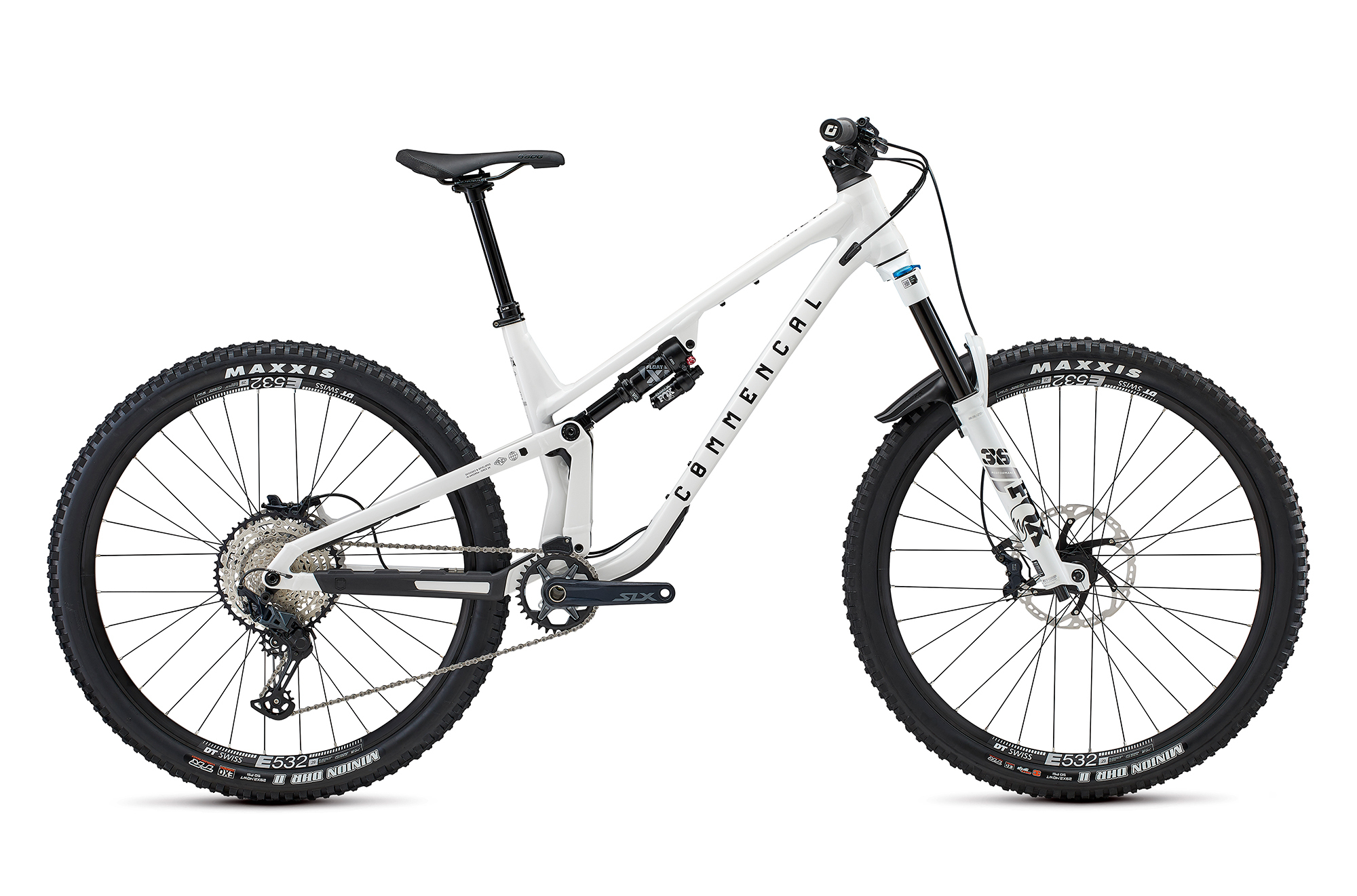

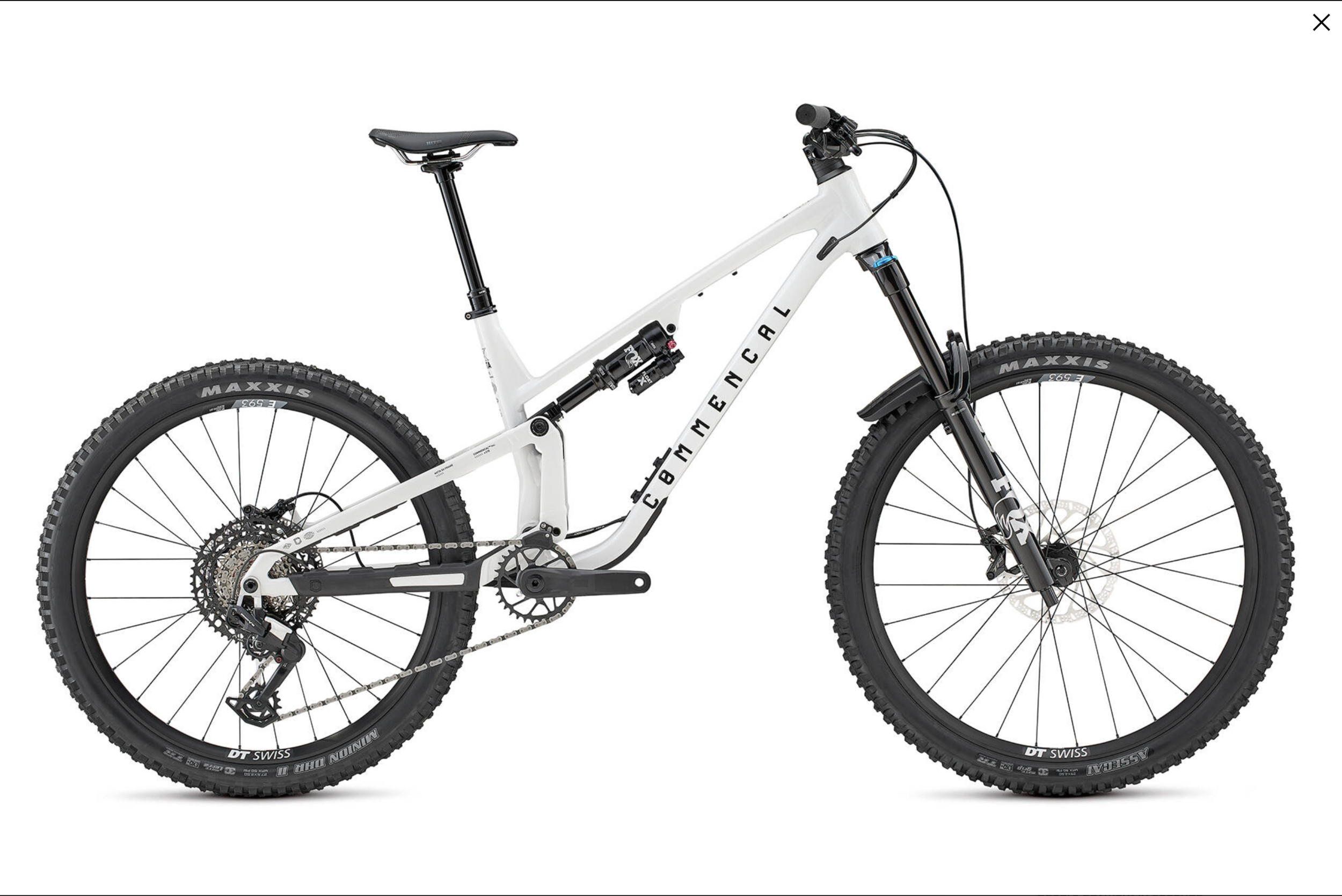

COMMENCAL META V5 ESSENTIAL PURE WHITE
The META V5 is our vision of MTB. It's a bike that's easy to handle, balanced, technically sound, lively, playful and pedal-efficient thanks to the new Virtual Contact System (VCS) kinematics. With 150mm travel the META V5 can be ridden whatever the mood of the moment and the rider can be confident that it will overcome any type of terrain. Sometimes a race bike, sometimes a trail bike, the META V5 is synonymous with versatility and ease, without neglecting performance.
For the META V5 ESSENTIAL, we trust in FOX. The Float 36 Performance and its three-position GRIP cartridge sits at the front of the bike. On the back, we went with the FOX Float X which controls impacts better than before thanks to an enlarged cylinder.
The 12-speed drivetrain and 4-piston brakes are entrusted to SHIMANO thanks to the SLX groupset. The brand's reputation for performance and reliability is second to none.
DT SWISS takes care of wheels with E 532 tubeless enduro-specific rims combined with Formula hubs and Sapim spoke lacing.
To finish, the rubber, MAXXIS Minion DHRII tyres with EXO casing. They stand out for their versatility and strength.
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle
- SPECIFICATIONS -
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6
Shock
FOX Float X Performance
210 x 55 mm, 2-pos lever, rebound, LSC, 0.6 spacer
Fork
FOX 36 Performance, 160 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 spacer
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck
Soft compound, single clamp, black
Brakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holes
Shifters
SHIMANO SLX
12s
REAR DERAILLEUR
SHIMANO SLX
12s
Bottom bracket
SHIMANO BB71
Pressfit
Crankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology
Chain
SHIMANO SLX
12s
Cassette
SHIMANO SLX
12s, 10-51t
Rims
DT SWISS E 532
29'', 32h, 30 mm inner width
Hubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearings
Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual compound, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless Ready
Seat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote
Saddle
SDG Bel Air V3
140 mm width, steel rails
Weight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Pure White
Shiny Finish
Accessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
