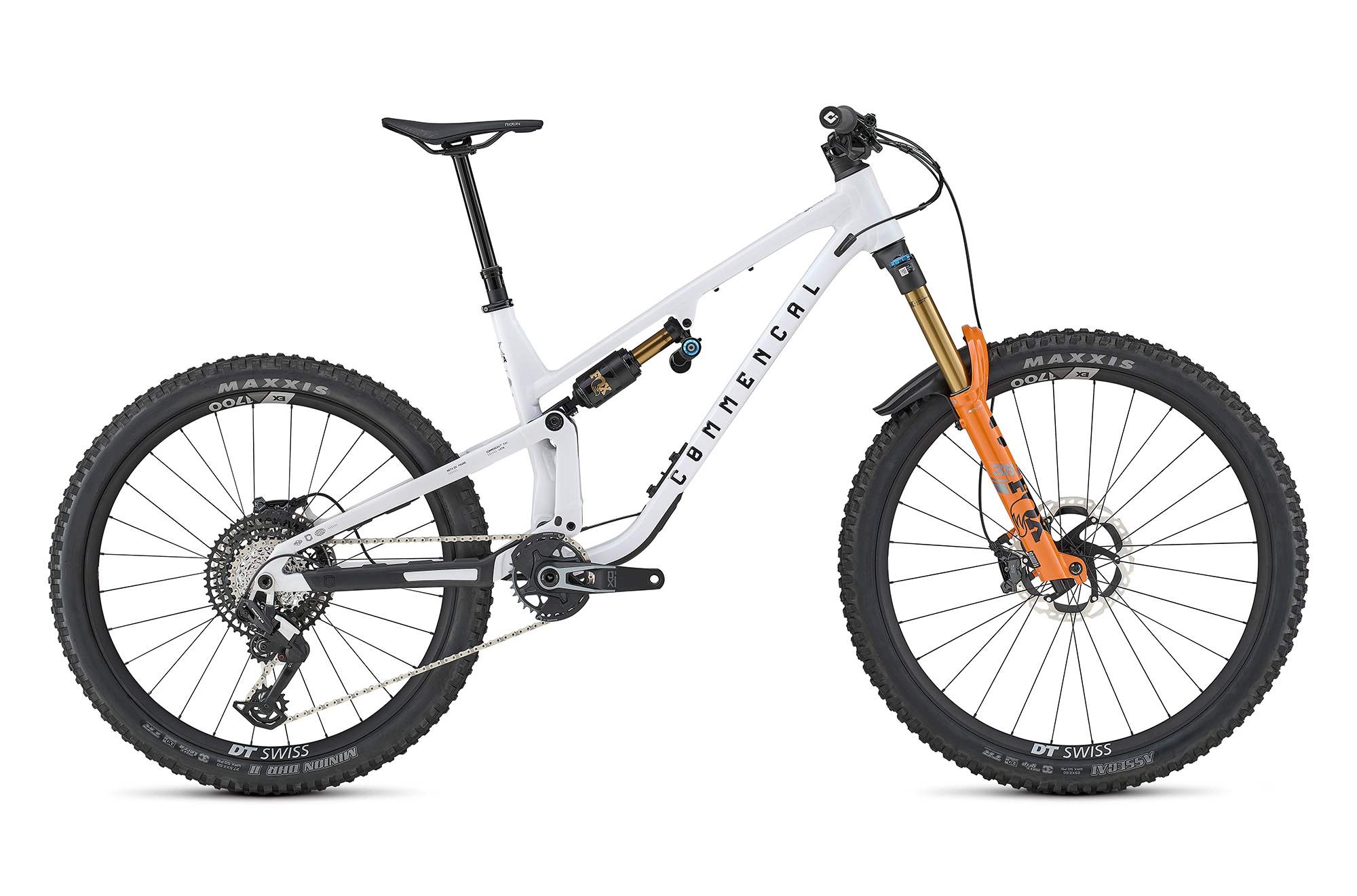

COMMENCAL META SX V5 SIGNATURE PURE WHITE 2026
This META SX V5 SIGNATURE comes equipped with a top-tier build. Every component is selected for its performance and to bring out the full potential of the frame.
• With the 38 Float Factory fork we offer the best from FOX: rigid chassis, Kashima anti-friction stanchions and Grip 2 cartridge with hydraulic adjustments. On the back, the Float X2 Factory is adapted to the kinematics of the frame. High and low speed compression and rebound adjustments play on the air volume and can be adjusted to rider style and the terrain. It has an external lock-out lever.
• SHIMANO Deore XT 4-piston brakes with 203mm discs offer a clear feel and proven reliability.
• DT SWISS EX 1700 aluminium wheels are hand-assembled and feature an ultra-strong welded rim.
• The SRAM GX Eagle 12-speed drivetrain features a wide 10-52t gear ratio.
FRAME
2025 META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
SHOCK
FOX Float X2 Factory
230 x 65 mm, HSC, HSR, LSR, 2-pos lever, 0.3 spacer
FORK
FOX 38 Factory, 170 mm travel
29", rebound, Boost (15 x 110 mm), HSC, LSC, HSR, LSR, 44mm offset, 1 Token
HEADSET
ACROS ZS56/ZS56
Alloy cups, sealed bearings
STEM
RIDE ALPHA 40
40 mm extension, 31.8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI Longneck V2.1
Black clamp
BRAKES
SHIMANO New XT, 4 pistons, resin pads
Rotors: SHIMANO MT905, 203 mm, 6-bolts
SHIFTERS
SRAM Eagle 90
12s
REAR DERAILLEUR
SRAM Eagle 90
12s
BOTTOM BRACKET
SRAM DUB92 MTB WIDE
Pressfit
CRANKSET
SRAM X0 T-Type, 165 mm crank arms
Chainring: SRAM X0 T-Type, 32t
CHAIN
SRAM GX T-Type
12s
CASSETTE
SRAM GX T-Type
12s, 10-52t
RIMS
DT SWISS EX1700
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner width
HUBS
DT SWISS 350
Rear: 32h, sealed bearings, 12 x 148 mm, Sram XD - Front: 32h, sealed bearings, 15 x 110 mm
SPOKES/NIPPLES
DT SWISS Competition
Straightpull
TYRES
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5''x2.5'' WT, 3C MaxxTerra, New EXO+, Tubeless Ready - Front: 29''x2.5'' WT, 3C MaxxGrip, New EXO+, Tubeless Ready
SEAT POST
ONE UP V3
31,6 mm, travel: 125 mm on S, 170 mm on M and 190 mm on L/XL, SouthPaw alloy remote
SADDLE
FIZIK Terra Ridon X5
145 mm, Alloy rails
WEIGHT
16,3 kg / 35.93 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED
No
COLOUR
Pure White
Shiny Finish
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, FIDLOCK base, seatpost adapter.
