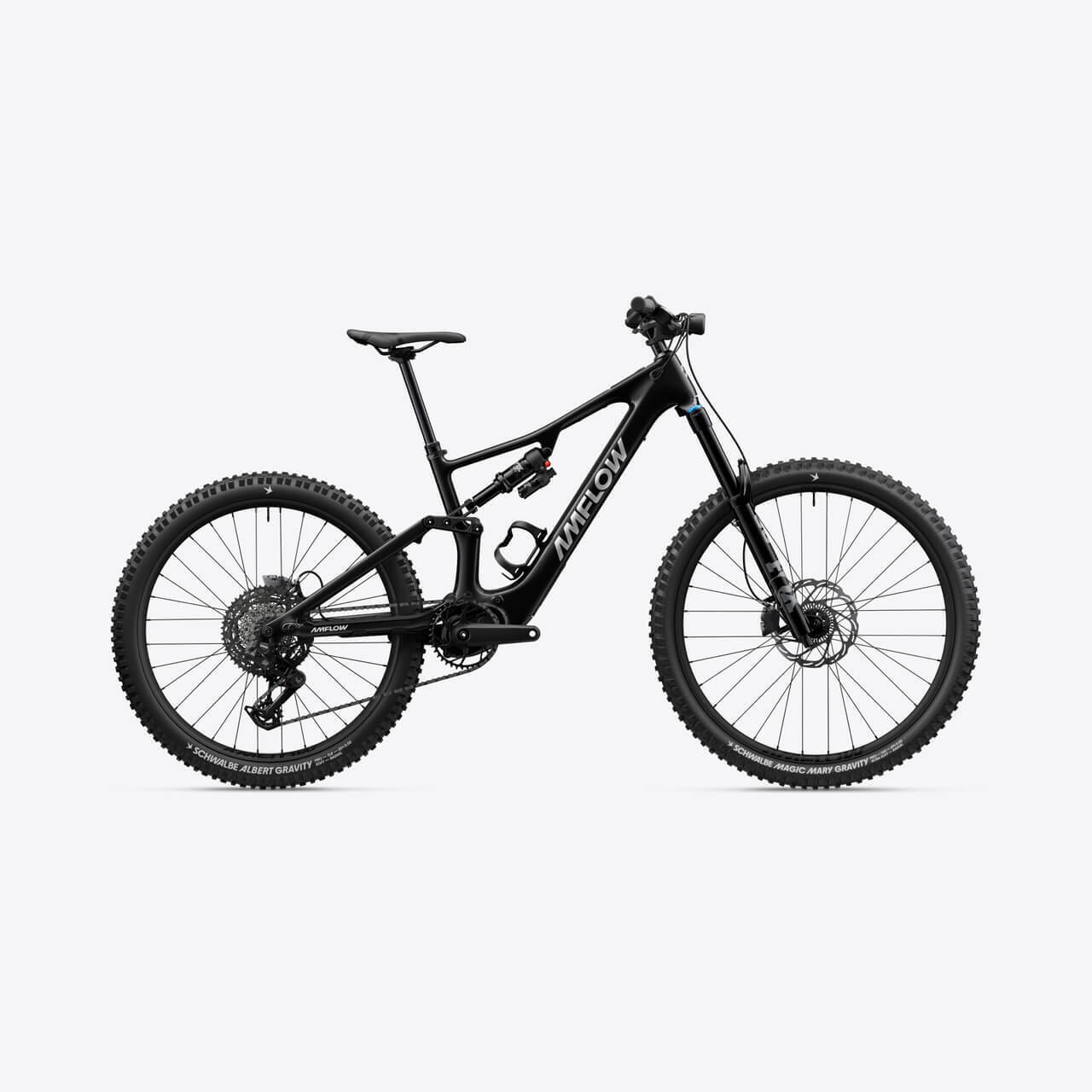

Amflow PX Carbon
Surging Power, Naturally Refined
The Avinox M2S Drive Unit uses sensors and smart algorithms for linear pedaling feel, with up to 150N·m max. torque and 1500W peak power.
Whisper-Quiet, Immersive Riding
Innovative compound planetary gears and a helical gear design reduce operating noise to as low as 45dBA for a quieter, more immersive ride.
Charge Fast, Ride Free
A 700Wh high-capacity battery paired with 3× super-fast charging supports all-day epic rides and helps eliminate range anxiety.
Versatile Geometry To Conquer Any Terrain
With up to 40 geometry combinations, it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.
Compact, More Capable
At 2.59kg, the Avinox M2S Drive Unit boosts power density by 45% and torque density by 21.6% compared to the previous generation.
Smart Offline Navigation
The Avinox Ride app imports third-party routes and turns ride history into route files for one-click ride data synchronization.
Frame
Amflow PX Carbon Frame
Phantom Black
40 adjustable geometry configurations*
Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear Shock
FOX Float X Performance
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Performance
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tires
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M/L Frame: 190mm
XL Frame: 210mm
XXL Frame: 230mm
Accessories
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
IoT Nano SIM Card
5/10mm Dropper Post Travel Reducing Spacer
Rear Light
Schwalbe Clik Valve Conversion Set
Torque Wrench
FOX 36 Mud Guard (Short)
Clear Frame Protection Film
Shock Pump
Quick Start Guide
