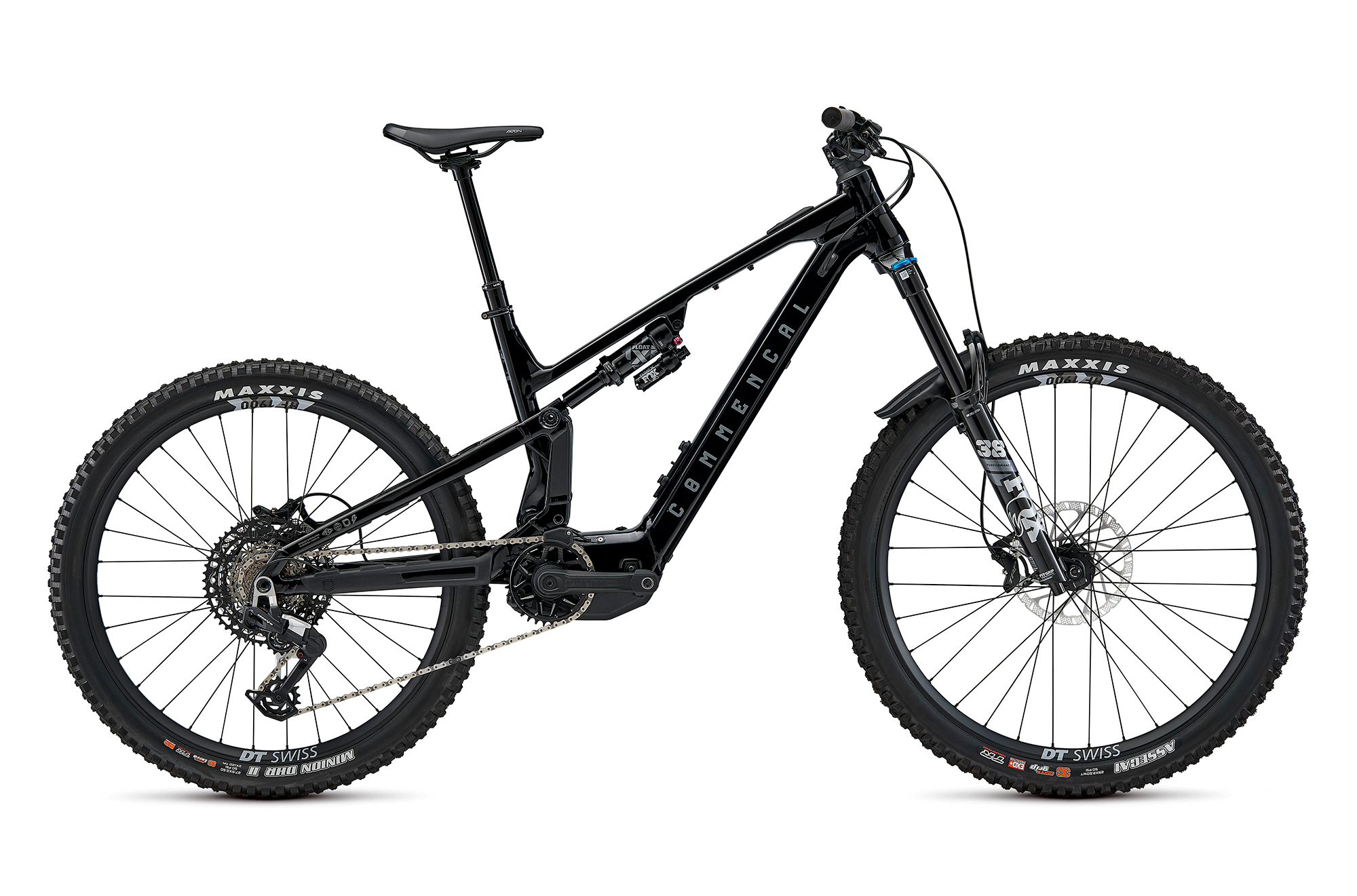

COMMENCAL META POWER SX 400 ESSENTIAL EAGLE 90 2026
- COMMENCAL META POWER SX 400 ESSENTIAL EAGLE 90 2026
The ESSENTIAL model, as the name suggests, focuses on the essentials. Every component is designed to handle laps on laps without question, offering simplicity, reliability, and functionality.
To prioritize the riding experience, we’ve equipped it with the BOSCH Performance Line SX motor. It combines lightweight downhill performance with climbing efficiency, offering up to 600W of maximum power.
The 400Wh internal battery can be paired with a 250Wh range extender for long rides, maintaining optimal weight distribution.
The FOX 38 Performance fork, with its precise e-bike chassis and GRIP damper cartridge, is incredibly easy to adjust while delivering flawless performance.
For the rear suspension the Float X shock with custom tuning strikes the perfect balance between grip, responsiveness, and comfort. The lockout setting makes climbing easier.
The new DT SWISS HF 1900 wheels are specifically designed for e-bike gravity riding. The DT 370 hubs, rims, and spokes are reinforced, and their hand-built construction ensures they’re ready for the harshest conditions.
The new SRAM Eagle 90 transmission incorporates the T-type system, robust and reliable, in its mechanical version. Ultra-versatile, with a gear range of 520%, it's ideal for long days on the bike.
The TRP DH-R EVO PRO are the brand's latest offering, even more powerful and consistent. They are paired with new discs featuring improved bite and heat dissipation. With this combination, power and precise feel are the hallmarks.
*Bike specifications are subject to change without notice.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6061 + AL 6066 - T6
Rear travel
170 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
Tapered
Headset type
ZS56 / 28,6 - ZS66 / 40
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BOSCH E-BIKE
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm UDH
Frame
META POWER SX BOSCH, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Motor
BOSCH Performance Line SX
Max. torque: 55 N.m, 250 W
Battery
BOSCH Compact Powertube 400
Fully integrated main battery, 400 Wh
Display
BOSCH System Controller
ON/OFF switch, assist mode level, battery charge level
Shock
FOX Float X Performance
230 x 65 mm, 2-position (open/firm) lever, LSR, LSC, 0.4 spacers
Fork
FOX 38 Performance E-Bike, 170 mm
29", Fit Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 44 mm offset, 3 spacers
Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings
Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, 132 mm width, black
Brakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rotors: TRP R2 203 mm, 6-bolt, 2.3 mm width
Shifters
SRAM Eagle 90
12s
Chain guide
RIDE ALPHA
32-34t
REAR DERAILLEUR
SRAM Eagle 90
12s
Crankset
E13 Helix Core E*Spec, 155 mm crank arms, Bosch Gen4
Chainring: E13 Helix Race 34T, 34t, direct mount, Bosch Gen4
Chain
SRAM GX T-type
12s
Cassette
SRAM XS 1270 T-Type
12s, 10-52t
Rims
DT SWISS HF1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Hubs
DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 18t, Sram XD - Front: 28h, sealed bearings, 15 x 110 mm
Spokes/nipples
Included with wheelset
Tyres
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5 x 2.50 WT, Tubeless Ready, 3C MaxxTerra, Double Down - Front: 29 x 2.50 WT, Tubeless Ready, 3C MaxxGrip, New EXO+
Seat post
KS Rage-I
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XL
Saddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius rails
Weight
22.0 kg / 48.50 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
CRANKBROTHERS Stamp 1
Colour
Pure Black
Shiny Finish
Accessories
Down tube protector, chainstay protector, seatstay protector, FOX 38 specific fender, pedals CRANKBROTHERS Stamp 1, FIDLOCK base.
Battery charger: BOSCH 4A Charger. Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.
