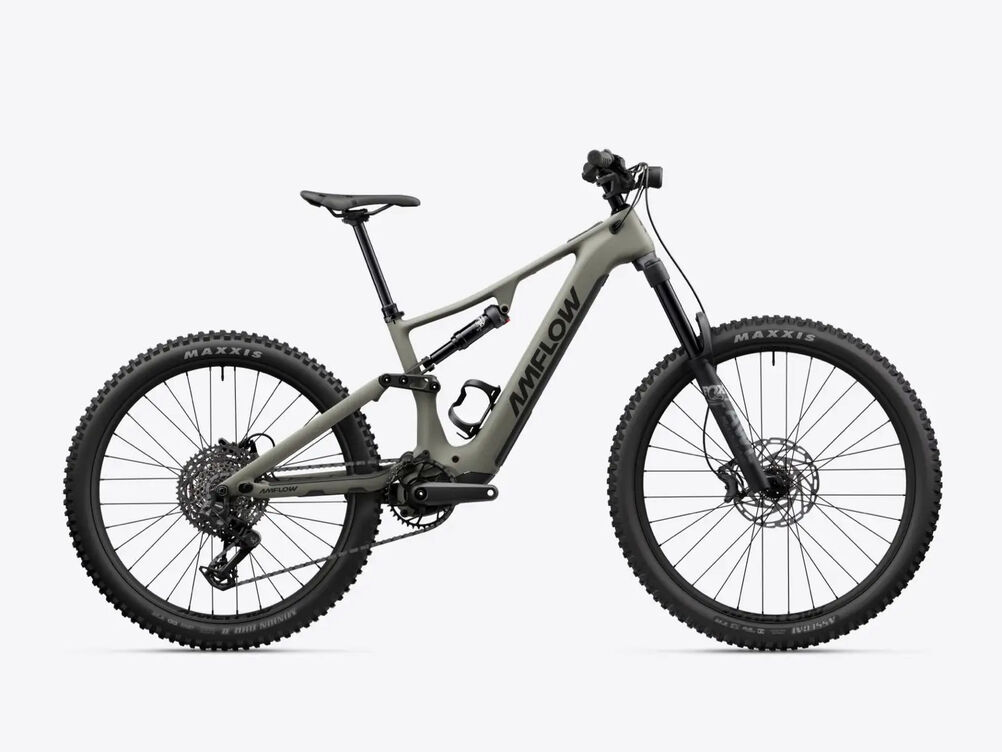

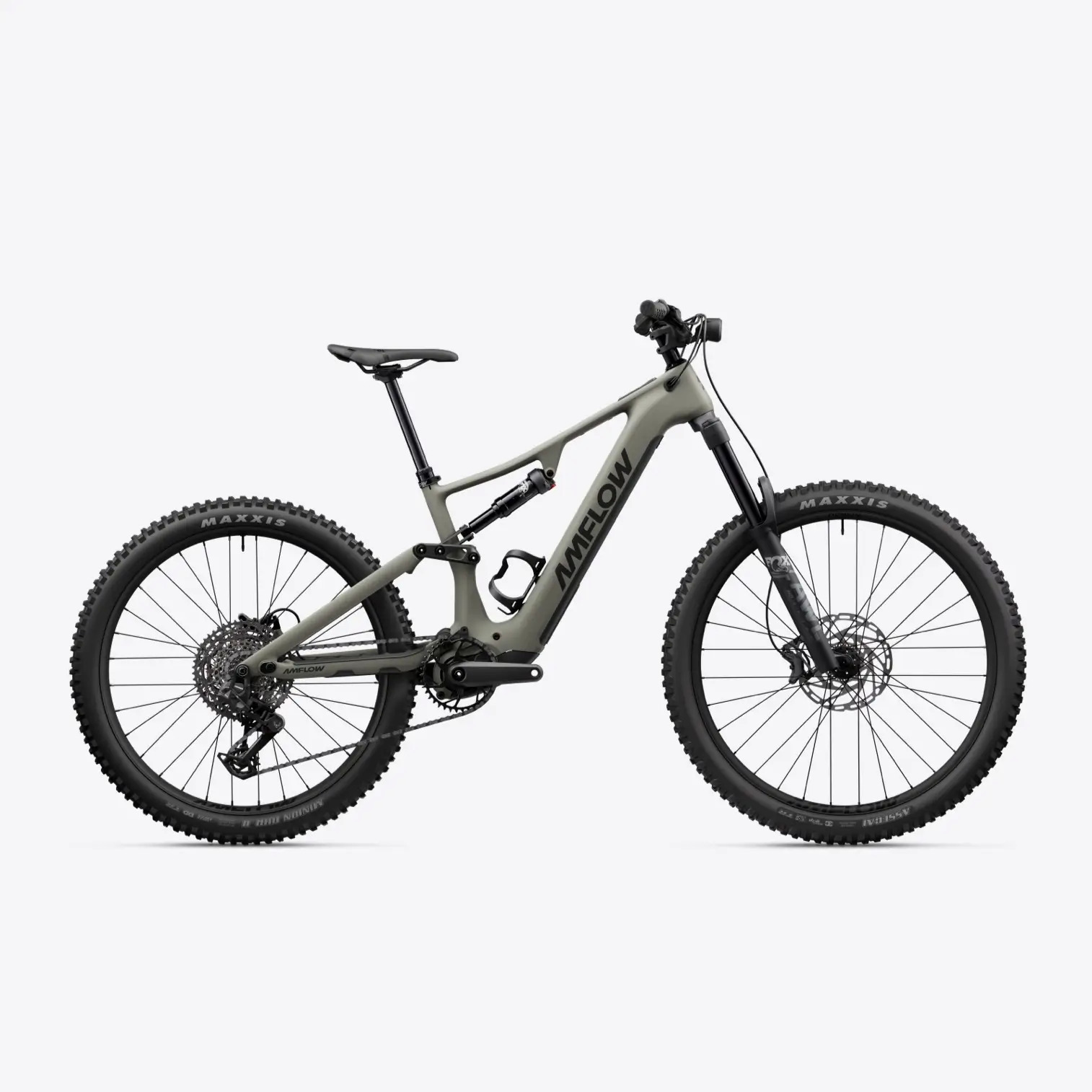

Amflow PR Carbon
- Amflow PR Carbon
Amflow PR combines striking aesthetics with a full-carbon frame, delivering up to 150N·m of torque and 1500W of peak power on configurations equipped with the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride farther and push your limits in style.
The Amflow PR frame weighs around 2.9kg, yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.
From power to control, Amflow PR is built without compromise. Experience comprehensive performance that puts you in command of every ride.
Frame
Amflow PR Carbon Frame
Moss Green
40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
E-Bike System
Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Charger: 4A/168W
Rear Shock
FOX Float Rhythm
custom tune, LSR adjustment, 210×55mm, air shock
Fork
FOX AWL HD Sport
160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom
Tektro Sensor Rotor (203mm, 2.3mm)
Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tyres
Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR
Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR
Handlebar
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M Frame: 190mm
L/XL Frame: 210mm
XXL Frame: 230mm
Accessories
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Clear Frame Protection Film
Torque Wrench
Shock Pump
