Specification

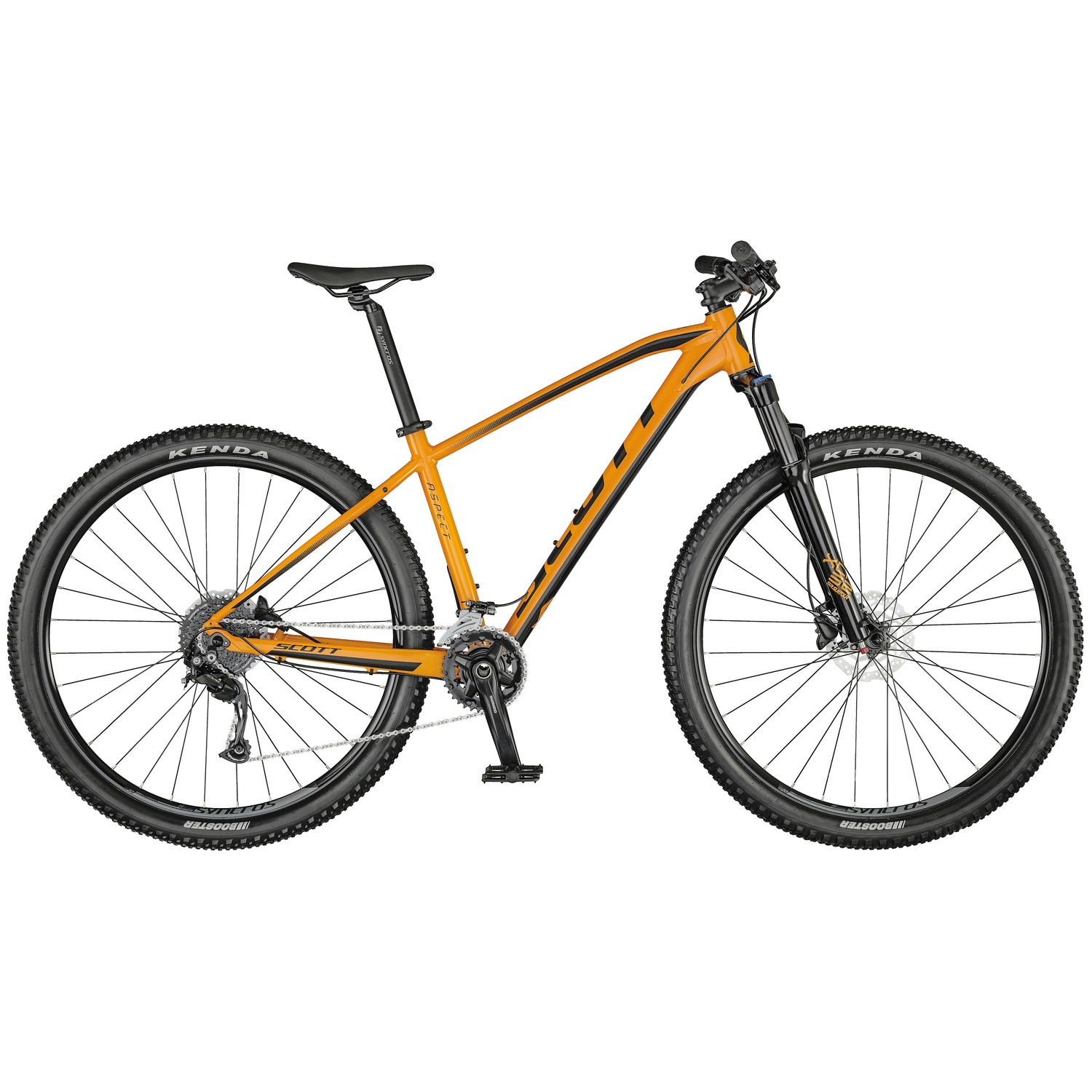

The SCOTT Aspect 940 is a hardtail mountain bike that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame
Aspect 900-700 series / Alloy 6061 Custom Butted Tubing
BSA73 / Internal Cable Routing / replaceable hanger

Fork
Suntour XCR32/X1-RL-R / Hyd. Lockout / Reb. Adj.
100mm travel

Rear Derailleur
Shimano Alivio RD-M3100
18 Speed

Front Derailleur
Shimano FD-M3120 Side Swing / 31.8mm

Shifters
Shimano SL-M3100
R-fire plus / 2 way release
w/gear indicator

Crankset
Shimano FC-MT2102
2-piece Design / 36X22

BB-Set
Shimano BB-MT500
Hollowtech II / threaded

Chain
KMC X9

Cassette
Shimano CS-HG200-9 / 11-36T

Brakes
Shimano MT200 / Hydr. Disc

Rotor
Shimano SM-RT10 CL rotor / F&R 160mm

Handlebar
Syncros 3.0 / 720mm
black / 31.8mm / 12mm rise / 9° BS
Syncros Pro Grip

H'stem
Syncros 3.0 / 7° / Black

Seatpost
Syncros 3.0
31.6mm / 350mm / Black

Seat
Syncros 3.0

Headset
Syncros OE Press Fit / 1 1/8"
OD 50mm / ID 44mm

Hub (Front)
Shimano HB TX505
Hub (Rear)
Shimano FH-TX5058

Spokes
14 G / stainless / black

Rims
Syncros X-20 Disc
32H / black

Front Tyre
Kenda Booster
2.4" / 30TPI

Rear Tyre
Kenda Booster
2.4" / 30TPI

Pedals
VP VP-536
Approx weights in KG
14.15
Approx weights in LBS
31.20

Max. System Weight
128 kg
The overall weight includes the bike
the rider
the equipment
and possible additional luggage.
