E-Mountain Bikes

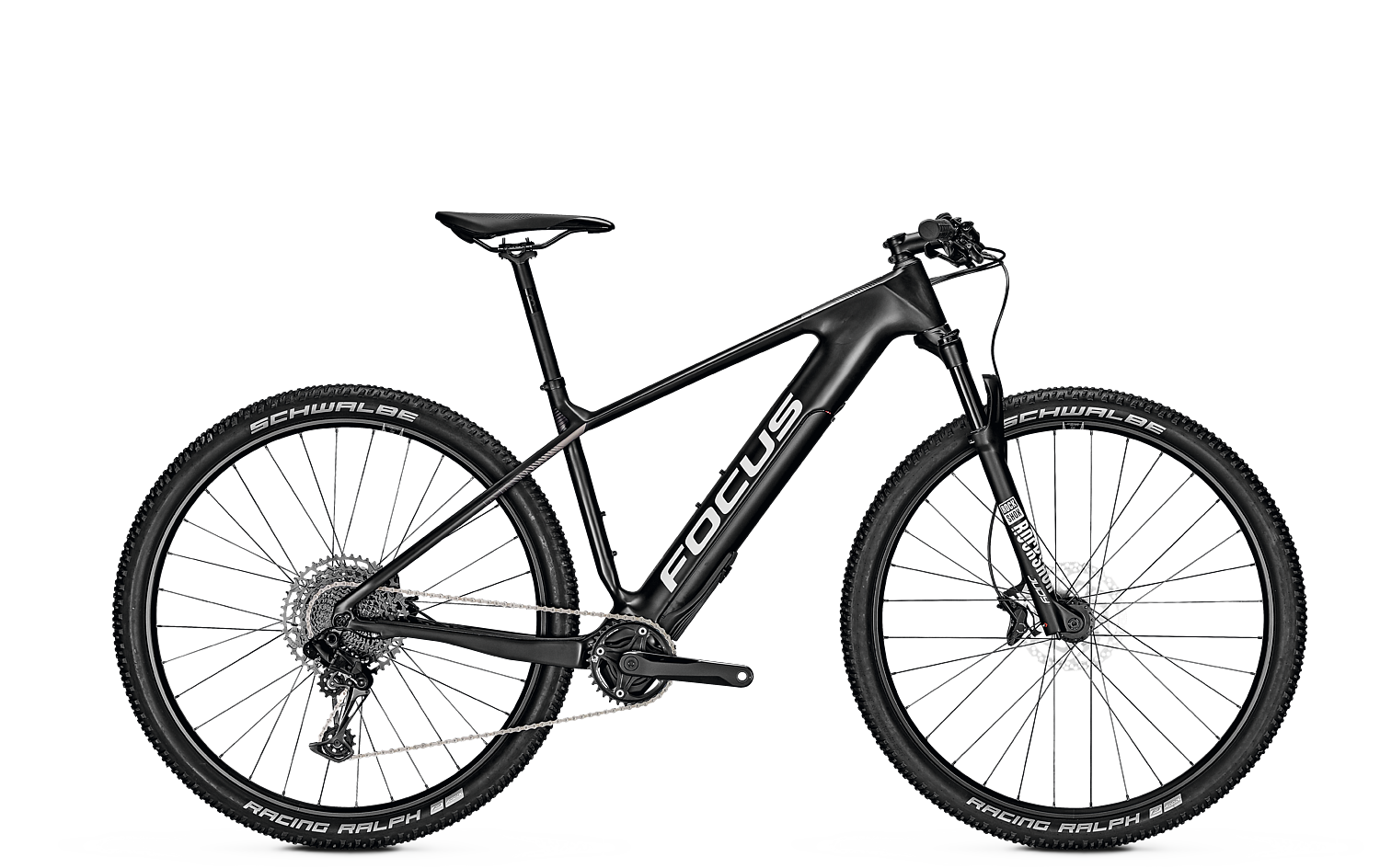

FOCUS RAVEN² 9.7 £3695
14 kg Carbon Electric Hardtail
Price
£3695.00
Specification
FOCUS RAVEN² 9.7
Comfortable (C.I.A.) and incredibly lightweight F.I.T. Carbon frame with integrated Fazua Evation drive
Perfectly tuned RockShox Judy Gold fork with 100 mm travel
SRAM SX Eagle 1x12 shifting set
Groupset
Sram SX Eagle
Frame
F.I.T. Technology Carbon frame, 148x12 mm through axle, internal cable routing, Post Mount 160 mm
Fork
Rock Shox Judy Gold RL 29 Boost, E-MTB, 15x110 mm, 51 mm rake, 100 mm travel
Handlebar
BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree
Saddle
Focus Race SL
Seat post
BBB Deluxe, Aluminium, 27,2mm, 350mm
Stem
BBB Rider BHS-109, 31.8mm, 7degree
Brakes
Shimano BR-MT420, 4 piston
Crank set
FSA CK-746, aluminium
Sprocket
Sram PG-1210 Eagle, 12-speed
Transmission
front: 34, rear: 11-50
Wheel rims
Rodi Black Rock, with eyelets
Brake lever
Shimano BR-MT420
Battery
FAZUA evation, 252 Wh, removeable
250 Wh
Display
FAZUA evation 1.0 remote
Motor
FAZUA evation, 60 Nm, 250 W
Color
Carbon Raw Matt
Travel
100 mm
Hub
Novatec D041, 15x110 mm
Novatec D162 Disc, 12x148 mm
Grip
Focus Locker SL
Rear derailleur
Sram SX Eagle, 12-speed
Tyre
Schwalbe Racing Ralph Performance 2.25
Shift/brake lever
Shimano BR-MT420
SRAM SX Eagle, 12-speed
Spoke
Niro, black
Chain
Sram SX Eagle
