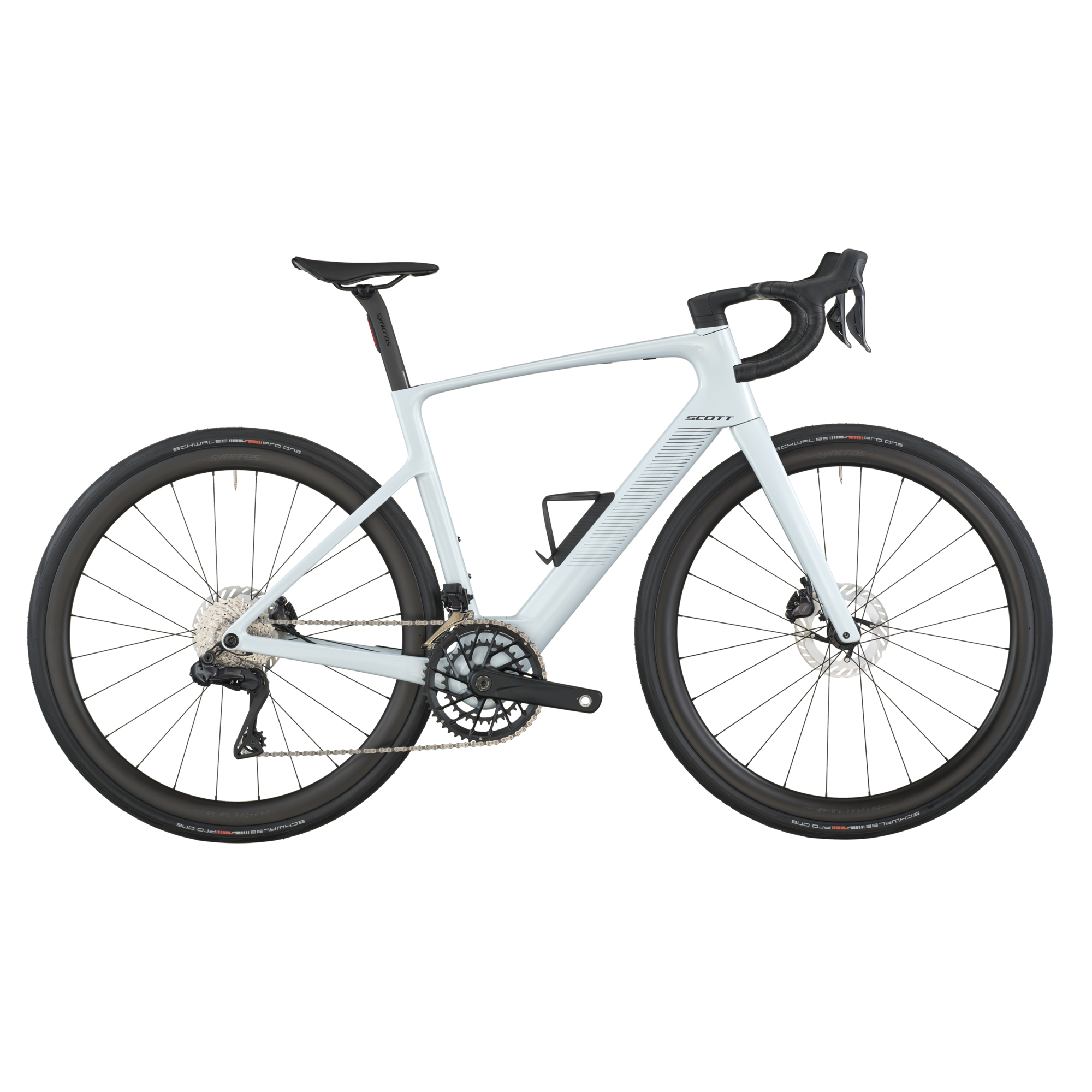

Scott Fastlane 10
If you’ve been looking for a fast E-Bike that doesn’t scream E-Bike, the Fastlane 10 is your dream come true. Designed to be almost indiscernible from an analog racing bike, Fastlane 10 hides a TQ HPR40 motor drive unit and 290Wh battery in its svelte figure, leaving you fast under the radar.
Frame
Fastlane Road Disc HMX, Endurance geometry, Syncros Cable Integration System, TQ HPR40, UDH Interface, Range Extender Ready
Fork
Fastlane Road HMX Flatmount Disc, 27.2mm Eccentric Carbon Steerer
Drive Unit
TQ HPR40 Mid Motor drive 40Nm max Torque, EU: 25kmh - US: 28mph
Battery
TQ Internal 290Wh
Display
TQ Bar-End-Display, Bluetooth, ANT+, Dedicated Smartphone app
Charger
TQ AC 90-264V 2A
Rear Derailleur
Shimano Ultegra Di2 RD-R8150
24 Speed Electronic Shift System
Front Derailleur
Shimano Ultegra Di2 FD-R8150
Electronic Shift System
Shifters
Shimano Ultegra ST-R8170
Dual control 24 Speed Electronic Shift System
Crankset
FSA e-Bike Carbon CK-713
Chainring
FSA 50x34
Chain
Shimano CN-M8100-12
Cassette
Shimano CS-R8101
11-34
Brakes
Shimano BR-R8170 Hyd.Disc
Rotor
Shimano RT-CL800 rotor 160/F and 160/R
Handlebar
Syncros IC-R100-SL
Carbon combo
Seatpost
Syncros Duncan 1.0 iL D-shape
Seat
Syncros Belcarra V 2.0 NEO Cut Out
Headset
Acros AIF-1317S
Wheelset
Syncros Capital 1.0 40 Disc, Front 12x100mmTA, Rear 12x142mmTA
Syncros SL Axle
Spokes
24 Front, 24 Rear
Front Tire
Schwalbe PRO ONE Evo, 700x34C
Rear Tire
Schwalbe PRO ONE Evo, 700x34C
Lights
Syncros Campbell iL rear
Accessories
Coupe Cage 1.0 bottle cage
Syncros iS Drop Bar Tool 2
Approx weight in KG
10.6
Approx weight in LBS
23.37
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
