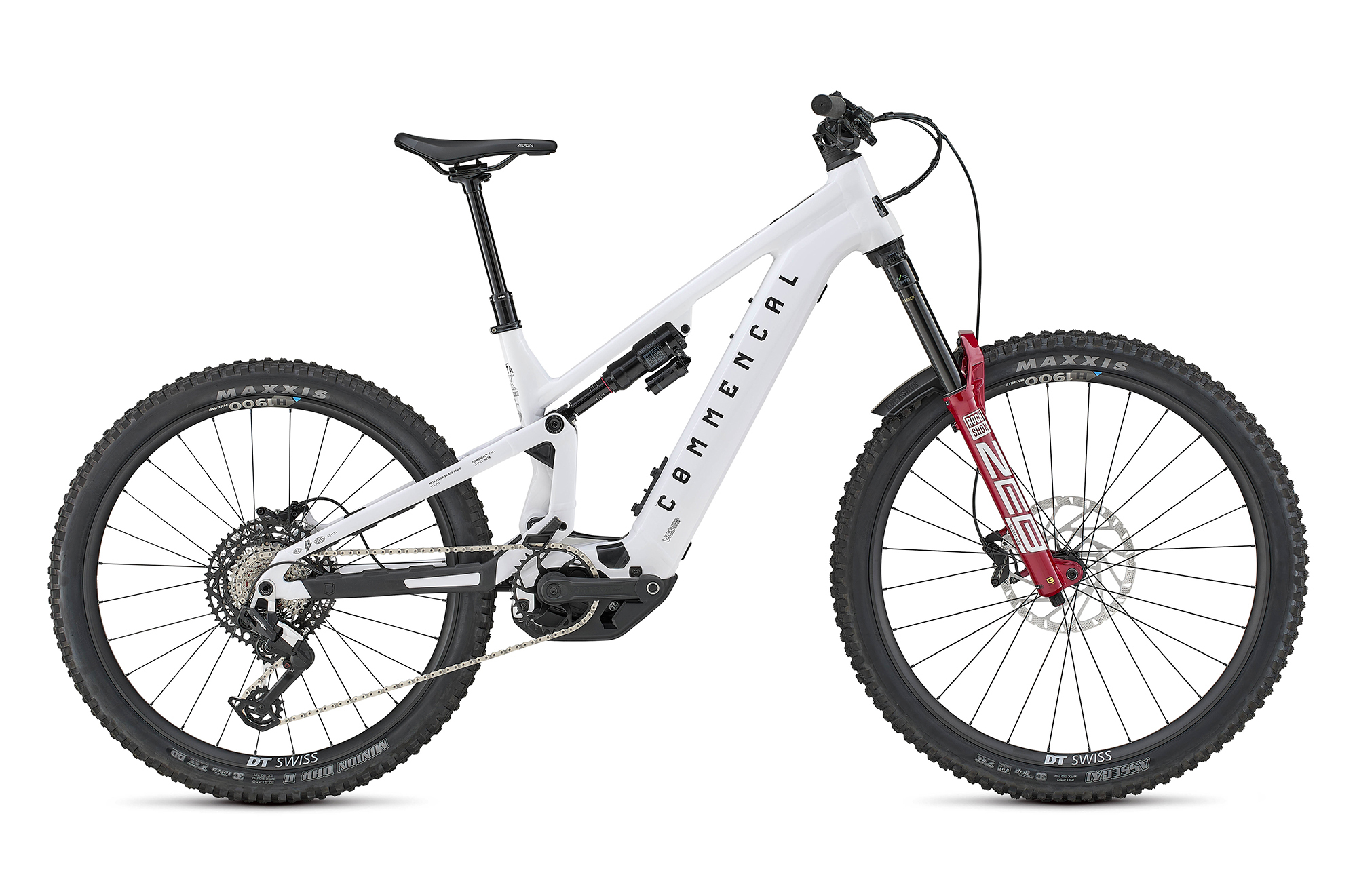

COMMENCAL META POWER SX 800 ROCKSHOX PURE WHITE 2026
The META POWER SX 800 is aimed at riders who want to venture ever further afield. Fitted with a BOSCH Performance CX Gen5 motor and an 800Wh battery, it combines power and range. Designed for challenging natural trails, it tackles elevation gain with ease and comfort.
This model has been designed to offer comfort and performance in all circumstances:
• A ZEB Ultimate fork and Super Deluxe Select shock to filter the terrain.
• The new Sram Eagle 90 T-Type groupset has been chosen for the drivetrain. It is reliable and responsive.
• The wheels are H1900 from DT Swiss. Designed for E-Bikes, they are hand-built.
• Braking is provided by TRP DHR EVO PRO. Power and consistency are guaranteed in all circumstances.
*Bike specifications are subject to change without notice.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
Al 6061
Frame weight
5,86 kg / 12.91 lb
Rear travel
180 mm front / 180 mm rear
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
ZS56 / 28,6 - ZS66 / 40
Headset type
Tapered
Maximum tyre dimension (etrto)
64 mm / Ø 721 mm
Disc brake standard
Postmount 200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Rear hub compatibility
148 x 12 UDH
Frame
META POWER SX BOSCH, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Motor
BOSCH Performance Line CX Gen5
100 n.m
Battery
BOSCH Powertube 800
Fully integrated main battery, 800 Wh
Display
BOSCH System Controller, ON/OFF switch, assist mode level, battery charge level
Switch: BOSCH Mini Remote, mode switch, walk assist, light switch
Shock
ROCKSHOX Super Deluxe Select
230 x 65 mm, Debonair +, 2-postion (open/firm) lever, Rebound
Fork
ROCKSHOX ZEB Ultimate, 180 mm
29", Charger 3.1 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset
Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings
Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, black
Brakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm width
Shifters
SRAM Eagle 90
12s
Chain guide
RIDE ALPHA
32-34t
REAR DERAILLEUR
SRAM Eagle 90
12s
Crankset
E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM E-MTB T-Type, 34t for Bosch system, direct mount
Chain
SRAM GX T-Type
12s, Flattop
Cassette
SRAM XS 1270 T-TYPE
12s, 10-52t
Rims
DT SWISS H1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Hubs
DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm
Spokes/nipples
Included with wheelset
Tyres
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TR
Seat post
KS Ragei
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XL
Saddle
FIZIK Terra Aidon X5
145 mm width, Kium Mobius rails
Weight
TBD
Pedals included
CRANKBROTHERS Stamp 1
Colour
Pure White
Shiny Finish
Accessories
Down tube protector, chainstay protector, seatstay protector, ZEB specific fender, FIDLOCK base, BOSCH Kiox 400, Pedals CRANKBROTHERS Stamp 1.
Battery charger: BOSCH 4A Charger, Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.
