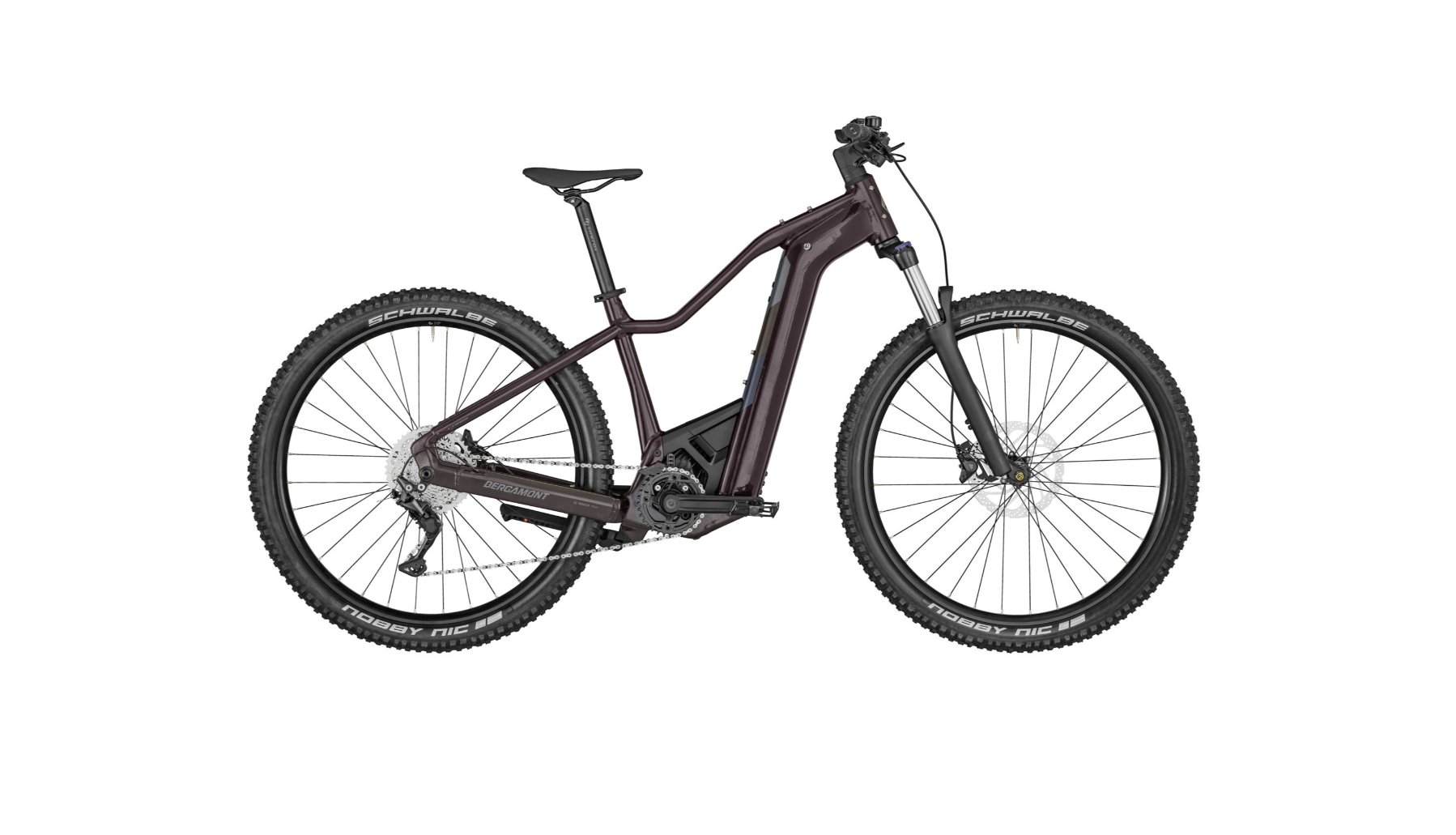

Bergamont E-Revox Sport FMN
Attractive e-mtb hardtail based on a modern frame platform with women specific design and maximum integration of the latest Bosch Performance Line CX drive unit and 625 Wh PowerTube battery technology.
Key Features
29", super lite AL-6061 tubing, BES III, PowerTube battery
Suntour XCM 34, 120 mm, Thru-axle
Shimano Deore, 1x10
Bosch BES3 Performance Line CX, 625 Wh battery
Shimano BR-MT410, hydraulic disc
Cross X18 rims, Shimano MT400 hubs
Schwalbe Nobby Nic, 29x2.60"
Frame29", super lite AL-6061 tubing, BES III, PowerTube battery
ForkSuntour XCM34 LO, 120 mm, rebound adjust, 15x110 mm axle
Drive UnitBosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 625 Wh
ChargerBosch Standard Charger, 4A
Rear DerailleurShimano Deore, RD-M5120, Shadow Plus
ShiftersShimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
CranksetFSA CK-320, 34t, 170 mm
BB-SetBosch, Isis
ChainKMC e10S
CassetteShimano Deore, CS-M4100, 11-46t
Brake LeversShimano BL-M4100, hydraulic disc brake
BrakesShimano BR-MT410, hydraulic disc brake
RotorFront: Shimano SM-RT30, 203 mm
Rear: Shimano SM-RT30, 180 mm
HandlebarSyncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
H'stemSatori Viper, 0°
SeatpostSyncros M3.0
SeatSyncros Savona 2.5
HeadsetAcros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Hub (Front)Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Hub (Rear)Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Spokesstainless, black
RimsCross X18, disc, eyelets, width: 30 mm
Front TireSchwalbe Nobby Nic Performance, 29x2.60"
Tube: Schwalbe SV19FB Light
Rear TireSchwalbe Nobby Nic Performance, 29x2.60"
Tube: Schwalbe SV19FB Light
PedalsMTB alloy
AccessoriesKickstand: Syncros
Approx weight in KG26,8
Colorshiny rosso black
Frame sizeS/M/L
GripsSyncros E-MTB
Max. System Weight135,0 kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
